Cyclic Corrosion Test Machine

Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of cyclic corrosion test machine in China, featured by quality products and low price. Welcome to buy CE approved cyclic corrosion test machine in stock here and get quotation from our factory. Contact us for discount information.

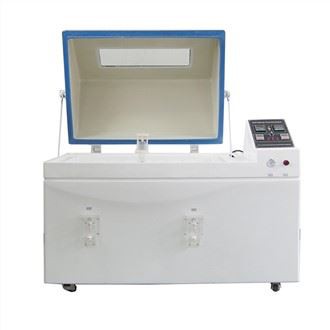

Cyclic corrosion test machine is a composite machine that can provide temperature and humidity testing and salt spray corrosion testing.



Video

---





Parameter

---



Name	Cyclic Corrosion Test Machine
Model	S-150	S-250	S-750
Internal dimensions (mm)	470*590*400	640*1000*500	750*1100*500
Overall dimensions (mm)	620*1400*1050	810*1800*1180	920*1900*1200
Temp. Range	Ambient ～ +60 degree
Temp. Fluctuation	± 0.5℃
Temp. Deviation	± 2.0 ℃
Humidity Range	95% ~ 98% RH
Salt Fog Deposition	1～2ml / 80cm2 · h
Spray Type	Continuous / Periodic
Heating Element	Nichrome heater
Salt Fog Collected	Fog collector and fog measure cylinder
Controller	PID controller
Material	Glass fiber reinforced plastics
Standard Configuration	8 round bars and 7 V-shaped grooves
Power	380V 50Hz
Environmental Conditional	5℃～+35 ℃ ≤85% RH



Details Design

Spray Tower	Specimen Holder	Controller







Features

---

1. The material

The salt corrosion tester is molded by FRP integral molding, corrosion resistant, shock resistant, easy to clean, no leakage phenomenon.



2. Easy maintenance

The line control board and other components of the Cyclic Corrosion Test Machine are fixed in a position convenient for inspection and maintenance.



3. The sealing

Salt spray test chamber adopts water seal structure, no salt spray overflow
