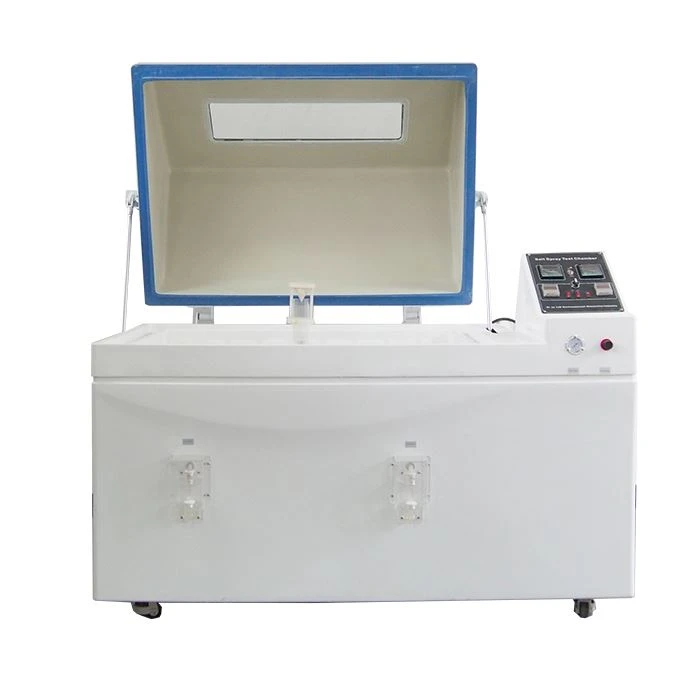

Salt Test Chamber
Name:Salt Test Chamber
materials:Glass Fiber
Application:Salt Corrosion Test
Humidity Range:30% ~ 98% RH
Temp. Range:+10 ℃ ～ +90 ℃
Spray Type:Continuous / Periodic
Controller:PID controller
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of salt test chamber in China, featured by quality products and low price. Welcome to buy CE approved salt test chamber in stock here and get quotation from our factory. Contact us for discount information.
Salt test chamber has a high degree of automation and high precision test method, save a lot of management time of operators, Salt spray chamber can reduce the test error caused by human reasons to a large extent.
Video
Parameter
| Name | Salt Mist Chamber | ||
Model | S-150 | S-250 | S-750 |
Internal dimensions (mm) | 470x590x400 | 640x1000x500 | 750x1100x500 |
Overall dimensions (mm) | 620x1400x1050 | 810x1800x1180 | 920x1900x1200 |
Interior Volume (L) | 150L | 250L | 750L |
Temperature Range | Ambient ～ +60 ℃ | ||
Temperature Fluctuation | ± 0.5 ℃ | ||
Temperature Deviation | ± 2.0 ℃ | ||
Humidity Range | 95 % ~ 98% RH | ||
Salt Fog Deposition | 1～2 ml / 80cm 2 · h | ||
Spray Type | Continuous / Periodic | ||
Heating Element | Nichrome heater | ||
Salt Fog Collected | Fog collector and fog measure cylinder | ||
Controller | PID controller | ||
Temperature Sensor | PT100Ω / MV A-class | ||
Material | Glass fiber reinforced plastics | ||
Standard Configuration | 8 round bars and 7 V-shaped grooves | ||
Power Supply | 380 V 50 Hz | ||
Environmental Conditional | 5 ℃～+35℃ ≤85% RH | ||
Details Design
 |  |
| PID controller | Adjustable spray tower |
 |  |
 |  |
Characteristic
1. The material
The Salt spray chamber is made of high quality glass fiber reinforced plastic composite material to prevent deformation of the equipment in high temperature.
2. Visual observation window
The Salt corrosion chamber is equipped with a front window to easily observe the corrosion of test samples
