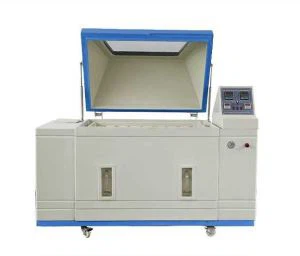

Electronics Salt Spray Test Equipment
Application:electric Environment Test
Humidity Range:95% ~ 98% RH
Temp. Range:Ambient ～ +60 ℃
Spray Type:Continuous / Periodic
Material: Glass Fiber
Name:Electronics Salt Spray Test Equipment
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of electronics salt spray test equipment in China, featured by quality products and low price. Welcome to buy CE approved electronics salt spray test equipment in stock here and get quotation from our factory. Contact us for discount information.
Electronics salt spray test equipment is used to assess the anti-corrosion ability of materials and their protective layers, as well as the process quality comparison of similar protective layers. It can also be used to assess the salt spray corrosion resistance of certain products.
Parameter
Model | S-010 | S-016 | S-020 |
Internal dimensions (mm) | 1000*1300*600 | 900*1600*720 | 1000*2000*800 |
Overall dimensions (mm) | 1200*2200*1400 | 1300*2500*1600 | 1420*3000*1850 |
Interior Volume (L) | 780 | 1030 | 1600 |
Temperature Range | Ambient ～ +60 ℃ | ||
Temperature Fluctuation | ± 0.5 ℃ | ||
Temperature Deviation | ± 2.0 ℃ | ||
Humidity Range | 95% ~ 98% RH | ||
Salt Fog Deposition | 1～2ml / 80cm2 · h | ||
Spray Type | Continuous / Periodic | ||
Heating Element | Nichrome heater | ||
Salt Fog Collected | Fog collector and fog measure cylinder | ||
Controller | PID controller | ||
Temperature Sensor | PT100Ω / MV A-class | ||
Material | Glass fiber reinforced plastics | ||
Standard Configuration | 8 round bars and 7 V-shaped grooves | ||
Power Supply | 380V 50Hz | ||
Environmental Conditional | 5℃～+35 ℃ ≤85% RH | ||
Advantage
 | Electric salt fog test equipment 1. Place the electronic product sample holder 2. Standard and customizable 3. Glass and steel, corrosion-resistant, long service life |
In practical use of electronic products will encounter rain, salt water erosion, resulting in the fading of electronic products, corrosion, aging, etc. , LIB INDUSTRY specializes in the production of testing the performance of electronic products salt fog chamber, suitable for factories, manufacturers, laboratories, university research.
Details
|
|
| Large Capacity Test Area | Quartz Spray Nozzle |
Test Requirements
1. The temperature in the salt spray test chamber is 35±2 degrees C;
2. At any location in the salt mist test equipment, a continuous zeroing of 16h of salt mist settlement is collected with a funnel with an area of 80cm, with an average of 1.0-2.0 ml of solution collected per hour;
3. The salt mist test chamber can be sprayed evenly, not affected by the test sample, the salt mist shall not be sprayed directly onto the test sample, the top and inner wall of the salt mist test chamber, and other parts of the condensate shall not drip on the test sample, and the air pressure inside and outside the salt mist test chamber must be balanced
Hot Tags: electronics salt spray test equipment, manufacturers, suppliers, factory, cost, price, used, specification, for sale, cct chambers, Photovoltaic Panels Salt Cycle Equipment, salt fog test chamber, salt spray corrosion test cabinet, salt spray testing machine, Solar PV Salt Spray Testing Device
