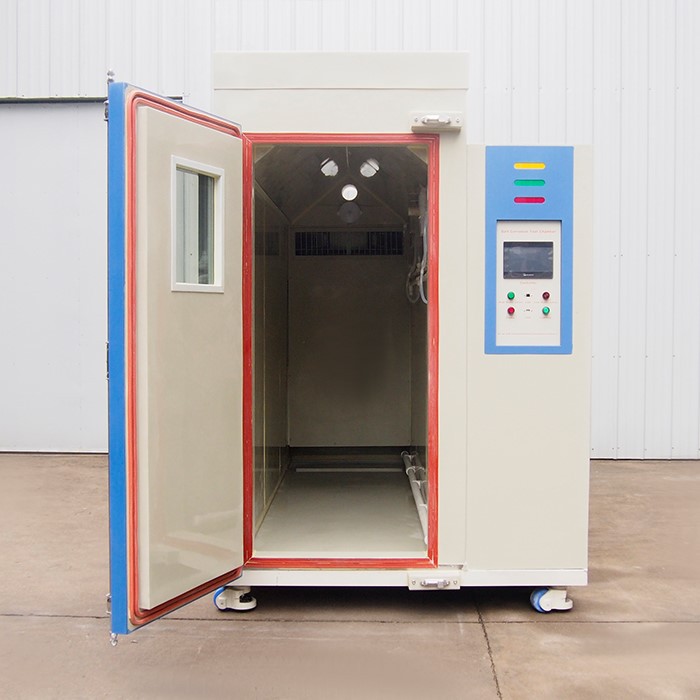

Salt Mist Corrosion Testing For Solar Panels
Temperature Range: +10℃ ~ +90℃;
Humidity Range: 30% ~ 98%RH;
Salt Fog Deposition: 1～2ml / 80cm2 · h;
Application: PV Panel;
Test Standard: IEC61701, IEC60068-2-52;
Controller: PC Link, USB;
Salt Mist Corrosion Testing For Solar Panels
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of salt mist corrosion testing for solar panels in China, featured by quality products and low price. Welcome to buy CE approved salt mist corrosion testing for solar panels in stock here and get quotation from our factory. Contact us for discount information.
PV modules are electrical devices used for continuous outdoor exposure throughout their life cycle. Salt Mist Corrosion Testing For Solar Panels simulation under special geographical conditions, the photovoltaic module components will cause sexual damage through long-term assimilation of small droplets containing salt in the atmosphere, and then affect its performance.
Salt spray corrosion is the most common and destructive atmospheric corrosion.
Standard Parameter
|
Model |
SC-020 |
|
Internal dimensions (mm) |
2600(D)*700(W)*1600(H) |
|
Overall dimensions (mm) |
3100(D)*1200(W)*2400(H) |
|
Quantity of Sample Holder |
solar panel size 1400 x 2400mm |
|
Temperature Range |
+10 ℃ ～ +70 ℃ |
|
Saturated barrel temp range |
Ambient ～ +60 ℃ |
|
Temperature Fluctuation |
± 0.5 ℃ |
|
Temperature Deviation |
± 2.0 ℃ |
|
Humidity Range |
30% ~ 98% RH |
|
Humidity Deviation |
+ 2%, - 3% |
|
Salt Fog Deposition |
1～2ml / 80cm2 · h |
|
Air Preheating |
Saturated air barrel |
|
Spraying System |
Atomizer tower and Spray nozzles |
|
Salt Fog Collected |
Fog collector and fog measure cylinder |
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection, PC Link, USB |
|
Material |
Inner: Glass fiber reinforced plastics External: SUS304 steel with protection coating |
|
Standard Configuration |
Supporting racks for PV panels |
|
Power Supply |
AC380V 50Hz 3phase |
|
Test standard |
IEC61701, IEC 60068-2-52 |
Detail Highlights
Slope Design
A pitched roof with a ridge midway, to ensure that the droplets drip down towards the side walls, to prevent droplets from dripping onto the specimens
Temperature and Humidity Uniform
salt test chamber two circulation air fans are installed in the rear chamber wall for internal temperature and humidity uniform
The Item of Workroom
1 pc PT-100 temp sensor
1 pc Humidity sensor: Wet-bulb gauze
5 pcs spray nozzle
2 pcs removable fog collector and measure cylinder
Test Standard
The salt spray test of LIB PV panels is designed according to the IEC61701, IEC60068-2-52 test standards and customer requirements
