SO2 Corrosion Test Chamber
Temperature Range: +10℃ ~ +90℃;
Humidity Range: 30% ~ 98%RH;
Salt Fog Deposition: 1～2ml / 80cm2 · h;
SO2 Gas Control: Control and display volume of SO2 gas;
Sealing: Pneumatic seal;
Controller: PC Link, USB;
Temperature Range: IEC60068-2-52, IEC61701-2;

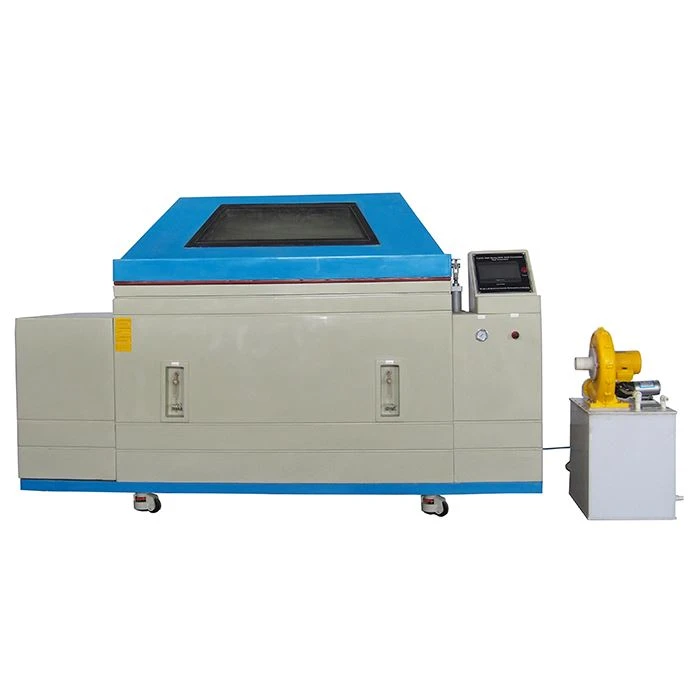

SO2 Corrosion Test Chamber
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of so2 corrosion test chamber in China, featured by quality products and low price. Welcome to buy CE approved so2 corrosion test chamber in stock here and get quotation from our factory. Contact us for discount information.
SO2 Corrosion Test Chamber is suitable for accelerated corrosion test on protective layer of metal materials, parts, electronic devices and industrial products, etc.
The SO2 salt spray test chamber quickly and easily reproduces the corrosion process of spraying and untreated metal surfaces.
Standard Parameter
| Name | SO2 Corrosion Test Chamber | ||
Model | SSC-010 | SSC-016 | SSC-020 |
Internal dimensions (mm) | 800*1450*680 | 1000*1600*800 | 1000*2000*900 |
Overall dimensions (mm) | 1400*2500*1720 | 1600*2650*1840 | 1600*3050*1940 |
Interior Volume (L) | 780 | 1280 | 1800 |
Temperature Range | +10 ℃ ～ +90 ℃ | ||
Temperature Fluctuation | ± 0.5 ℃ | ||
Temperature Deviation | ± 2.0 ℃ | ||
Humidity Range | 30% ~ 98% RH | ||
Humidity Deviation | + 2%, - 3% | ||
Salt Fog Deposition | 1～2ml / 80cm2 · h | ||
SO2 Gas Control | Control and display volume of SO2 gas | ||
Controller | Programmable color LCD touch screen controller, Ethernet connection, PC Link, USB，Ethernet connection, PC Link | ||
Air Circulation | Centrifugal wind fan | ||
SO2 Exhaust Device | NAOH tank | ||
Material | Glass fiber reinforced plastics | ||
Standard Configuration | 8 round bars and 7 V-shaped grooves | ||
Power Supply | 380V 50Hz | ||
Maximum Noise | 65 dBA | ||
Standard | IEC60068-2-52, IEC61701-2，ASTM G85，ISO 7253, ASTM B117, ISO9227 | ||
Environmental Conditional | 5℃～+35 ℃ ≤85% RH | ||
Design Highlights
|
|
|  |
Gas Sensor | Air Circulation System | NAOH solution tank | Controller |
Standard Features
Internal solution storage tank
Salt spray chamber can maximize the utilization of space, minimize maintenance. The storage tank has a brine filter and a built-in water level alarm that alerts the operator when the solution is at a low water level.
Rapid circulation
The SO2 salt spray chamber can change temperature relatively quickly due to its unique heater and large capacity power cooling/drying fan. Additional air heaters can be used for dry exposure tests with very low humidity.
