SO2 Cycle Salt Test Equipment
Temperature Range: +10℃ ~ +90℃;
Humidity Range: 30% ~ 98%RH;
Salt Fog Deposition: 1～2ml / 80cm2 · h;
SO2 Gas Control: Control and display volume of SO2 gas;
Sealing: Pneumatic seal;
Controller: PC Link, USB;
Temperature Range: IEC60068-2-52, IEC61701-2;

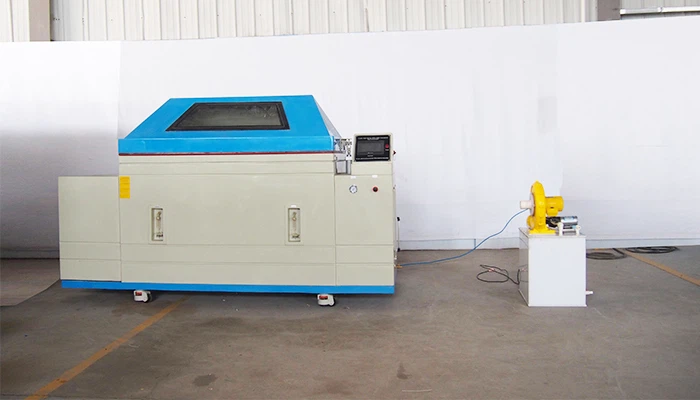

SO2 Cycle Salt Test Equipment
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of so2 cycle salt test equipment in China, featured by quality products and low price. Welcome to buy CE approved so2 cycle salt test equipment in stock here and get quotation from our factory. Contact us for discount information.
SO2 Cycle Salt Test Equipment is used to simulate the test product in the gas corrosion test environment test detection, test the corrosion resistance of the specimen product test to assess the corrosion ability of the material and its protective layer.
Salt test equipment is widely used in aerospace, automobile and motorcycle, armaments, electrical and electronic, chemical metallurgy and other industries
Standard Parameter
| Name | SO2 Cycle Salt Test Equipment | ||
Model | SSC-010 | SSC-016 | SSC-020 |
Internal dimensions (mm) | 800*1450*680 | 1000*1600*800 | 1000*2000*900 |
Overall dimensions (mm) | 1400*2500*1720 | 1600*2650*1840 | 1600*3050*1940 |
Interior Volume (L) | 780 | 1280 | 1800 |
Temperature Range | +10 ℃ ～ +90 ℃ | ||
Temperature Fluctuation | ± 0.5 ℃ | ||
Temperature Deviation | ± 2.0 ℃ | ||
Humidity Range | 30% ~ 98% RH | ||
Humidity Deviation | + 2%, - 3% | ||
Salt Fog Deposition | 1～2ml / 80cm2 · h | ||
SO2 Gas Control | Control and display volume of SO2 gas | ||
Controller | Programmable color LCD touch screen controller, Ethernet connection, PC Link, USB，Ethernet connection, PC Link | ||
Air Circulation | Centrifugal wind fan | ||
SO2 Exhaust Device | NAOH tank | ||
Material | Glass fiber reinforced plastics | ||
Standard Configuration | 8 round bars and 7 V-shaped grooves | ||
Power Supply | 380V 50Hz | ||
Maximum Noise | 65 dBA | ||
Standard | IEC60068-2-52, IEC61701-2，ASTM G85，ISO 7253, ASTM B117, ISO9227 | ||
Environmental Conditional | 5℃～+35 ℃ ≤85% RH | ||
Details
Sample holder
Exhaust gas treatment
Air circulation system
Standard Features
● Controller System
SO2 Cycle chamber equip Programmable color LCD touch screen controller;Ethernet connection, PC Link
● Humidity
SO2 test chamber external isolation, stainless steel surface evaporation humidifier
● Temperature Sensor, Humidity Sensor and Gas Sensor:
PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃;Dry and wet bulb sensor; SO2 gas sensor
