Battery Climate Chamber

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of battery climate chamber in China, featured by quality products and low price. Welcome to buy CE approved battery climate chamber in stock here and get quotation from our factory. Contact us for discount information.



Description

---

LIB battery climate chamber plays an important role in many aspects of product quality. Environmental test chambers allow us to recreate an array of conditions with temperature ranges from -20 degrees Celsius up to 150 degrees Celsius and relative humidity from 10% up to 150 % 98%. This capability is vital to performing tests such as accelerated lifecycle testing where simulating extreme environments is significant.



Product Parameters

Name	battery climate chamber
Model	TH-100	TH-225	TH-500	TH-800	TH-1000
Internal Dimension   (mm)	400*500*500	500*600*750	700*800*900	800*1000*1000	1000*1000*1000
Overall Dimension (mm)	860*1050*1620	960*1150*1860	1180*1350*2010	1280*1550*2110	1500*1550*2110
Interior Volume	100L	225L	500L	800L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃, B : -40℃ ～ +150 ℃, C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃   / min
Heating Rate	3 ℃   / min
Cooling system	Mechanical compression   refrigeration system
Refrigerating unit	French TECUMSEH   compressor
Refrigerant	Environment friendly   refrigerant
Humidifier	External isolation, stainless steel surface   evaporation humidifier
Dehumidification	Evaporator
Exterior Material	Steel Plate with   protective coating
Interior Material	SUS304 stainless steel
Observation Window	Interior   lighting, double-layer thermo stability   silicone rubber sealing
Power Supply	220V 50Hz / 380V 50Hz
Maximum Noise	65dBA
Environmental Conditional	5℃～+35 ℃   ≤85% RH

Application

---

LIB battery environmental testing chamber has a wide range of applications, such as:

1. Electronic products: mobile phones, computers, television, video recorders and so on

2. Textile fabric products: clothes, hats, shoes, ropes

3. Wire and cable: data cable, USB

4. Leather products: handbags, wallets, leather shoes, leather chairs

5. Instrumentation, vehicles, plastic products, metal,

6. Food, chemical, building materials, medical, aerospace



Details

---

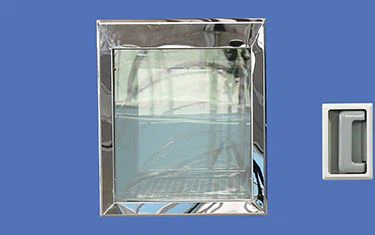

Viewing Window *Large viewing window with wiper *Can observe samples during testing * Interior lighting *Window coated with conducting film to protect it from frost	Cable Hole A standard test hole, located at the left side of the work room, is provided with a sleeve inside to prevent moisture from entering the insulation layer. Equipped with flange. The standard inner hole diameter is 50mm. Soft silicone plug seal; Metal enclosure closed, beautiful designed.

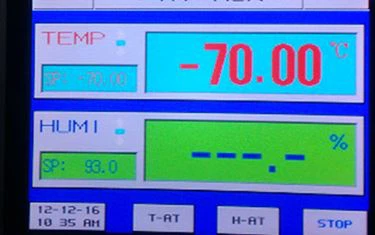

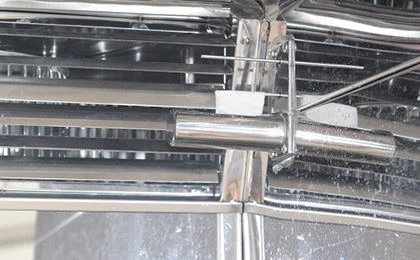

Controller PID programmable color touch screen controller, network connection computer. The set system language is English for standard.	Temperature and Humidity Sensor Laboratory climate humidity chamber use PT-100 Class A sensor, A wet gauze and a real-time temperature, converted by temperature difference, showing real-time relative humidity.



Successful Case

---

Egyptian customers come to the LIB factory to inspect the four test chambers, that they bought to test their household appliances.

1. 2 set of laboratory climate stability chamber

* Ultra-low temperature test from 150℃ to -40℃.

* Thermal compensation test:0℃ and 50℃.

* Inspect the safety device and USB Ethernet.

2. 2 set of Salt spray test chamber

* Perform temperature and saturation concentration test.

* Check the spraying settling and automatic stir system.

* Inspect the safety device and USB Ethernet.
