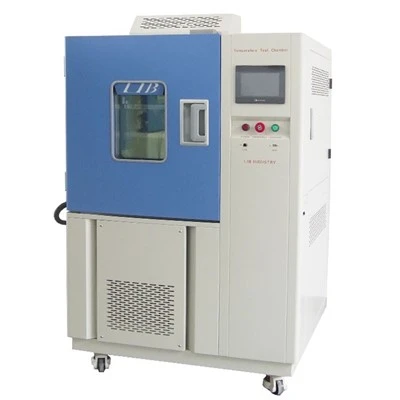

Climatic Test Cabinet
Name:Climatic test cabinet;
Temperature Range:-70°C~+150°C;
Model: TH-225;
Refrigerant: R404A, R23;
Temperature Fluctuation: ± 0.5 ℃;
Heating rate:3 ℃ / min;
Temperature deviation:± 2.0 ℃;
Standard and Custom;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of climatic test cabinet in China, featured by quality products and low price. Welcome to buy CE approved climatic test cabinet in stock here and get quotation from our factory. Contact us for discount information.
LIB climatic test cabinet is also called temperature and humidity calibration chamber specially developed by our company for the calibration of temperature and humidity meter.
Video
Technical Parameters
|
Model |
TH-100 |
TH-225 |
TH-500 |
TH-800 |
TH-1000 |
|
Internal dimension (mm) |
400*500*500 |
500*600*750 |
700*800*900 |
800*1000*1000 |
1000*1000*1000 |
|
Overall dimension (mm) |
860*1050*1620 |
960*1150*1860 |
1180*1350*2010 |
1280*1550*2110 |
1500*1550*2110 |
|
Capacity |
100L |
225L |
500L |
800L |
1000L |
|
Temperature range |
-20℃ ～+150 ℃ |
||||
|
Low type |
A: -40℃ B:-70℃ C -86℃ |
||||
|
Humidity Range |
20%-98%RH |
||||
|
Temperature deviation |
± 2.0 ℃ |
||||
|
Heating rate |
3 ℃ / min |
||||
|
Cooling rate |
1 ℃ / min |
||||
|
Controller |
Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
||||
|
Refrigerant |
R404A, R23 |
||||
|
Exterior material |
Steel Plate with protective coating |
||||
|
Interior material |
SUS304 stainless steel |
||||
|
Standard configuration |
1 Cable hole (Φ 50) with plug; 2 shelves |
||||
|
Timing Function |
0.1~999.9 (S,M,H) settable |
||||
Advantage Show
 |
 |
|
|
Touch screen controller System capacity:120 groups program X100 sections, required segmentation sections of each group can be arbitrarily divided and each program can freely link another. |
The compressor Adopt double stage linkage compressor, cooling rate is fast, cooling rate is stable Using environmentally friendly refrigerants, |
Security Settings Emergency stop button Fault warning device |
|
|
|
Calibration Report
Offer CE and ISO 17025 calibration certificate for FREE
Climatic test cabinet can be custom-made according to different request.
Product Feature
1. According to the actual requirements of a large number of temperature and humidity meter verification.
2. the use of double-layer high temperature resistant anti-aging silicone sealing strip, can effectively ensure that the experimental area is not affected by the external environment:
3. ultra-thick insulation layer, designed observation window vacuum glass, cold heat does not lose, to ensure the rapid and stable rise and cooling;
Hot Tags: climatic test cabinet, manufacturers, suppliers, factory, cost, price, used, specification, for sale, Thermal vibration test chamber, controlled temperature and humidity chamber, Humidity Artificial Climate Chamber, laboratory environmental chamber, industrial furnace, condensation test machine
