Humidity And Temperature Controlled Chamber
Temperature Range: 10℃ ～ +60 ℃;
Humidity Range: 95%RH ~ 100%;
Sample shelf:1pc sample shelf + 1pc round bar ;
Water trough: Build-in water trough in testing room;
Controller: Ethernet connection, USB port;
Water supply system: Automatic water supply;
Cable hole: Dia50mm port on left side, with plug;
Name: Humidity And Temperature Controlled Chamber;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of humidity and temperature controlled chamber in China, featured by quality products and low price. Welcome to buy CE approved humidity and temperature controlled chamber in stock here and get quotation from our factory. Contact us for discount information.
Humidity and Temperature Controlled Chamber offers a wide range of standard and custom solutions for any testing program. Environmental testing with a humidity equipment helps improve product reliability and durability.
Humidity chambers are available in a variety of styles, sizes, and performance configurations. All humidity machine come with a standard temperature range for combined temperature and humidity testing.
Parameters
| Name | Humidity and Temperature Controlled Chamber | |||
Model | TH-100 | TH-225 | TH-500 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 1000*1000*1000 |
Overall Dimension (mm) | 860*1050*1620 | 960*1150*1860 | 1180*1350*2010 | 1500*1550*2110 |
Interior Volume | 100L | 225L | 500L | 1000L |
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |||
Temperature Fluctuation | ± 0.5 ℃ | |||
Temperature Deviation | ± 2.0 ℃ | |||
Humidity Range | 20% ~ 98% RH | |||
Humidity Deviation | ± 2.5% RH | |||
Cooling Rate | 1 ℃ / min | |||
Heating Rate | 3 ℃ / min | |||
Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link | |||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ | |||
Standard Configuration | 1 Cable hole (Φ 50,) with a plug; 2 shelves | |||
Power Supply | 220V 50Hz / 380V 50Hz | |||
Maximum Noise | 65 dBA | |||
Environmental Conditional | 5℃～+35 ℃ ≤85% RH | |||
Main Details
| |
1.Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion; Nice ruggedness and long life. | 2.Air Circulation The centrifugal fan is installed at the rear of the machine body, and the air is uniformly distributed through the air outlet. |
| |

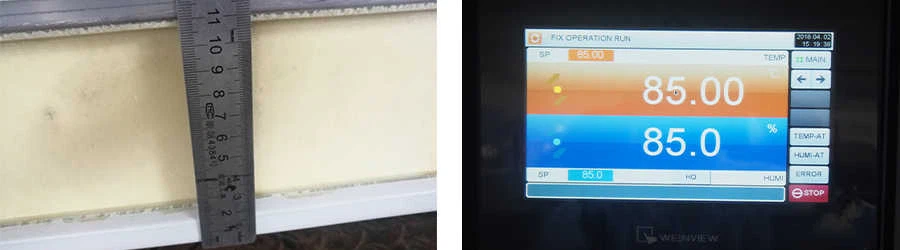

3.Insulation 10cm thick polyurethane foam and insulation cotton; Better insulation performance, degradation resistance, environmental protection, noise reduction. | 4.Controller PID programmable color touch screen controller, network connection computer. Can edit 120 programs 20 segments. |
Characteristics
1.Wide temperature ranges and volume selection
2.Temperature control and display unit
3.Humidity control and display unit
4.Programmable color LCD touch screen controller
5.Cold Constant Temperature Chamber use multi-language interface
6.USB and Ethernet can download test data
7. Casters, shelf, and cable port are standard
8.Adjustable and removable sample shelves
9.Long-time to perform 85℃ 85%RH test
After service
1. At first,LIB artificial climate chamber are produced based on 20 years product lifetime. Normally once test device have problems, we judge the problems, and send spare parts to our customers, and teach them how to change new parts by email or video. Within 3 years, all spare parts and shipping costs (by DHL, TNT, and FedEx) paid by our company LIB.
2. If customers need our engineers' on-site service, the company only needs to pay the ticket accommodation to our engineers, service is for free.
3. If Products still can't use after our engineers' repair, we will produce a new test device (same as the old one) to our customers with no charge.
4. You can contact our local service center in the overseas market to get service and products.
