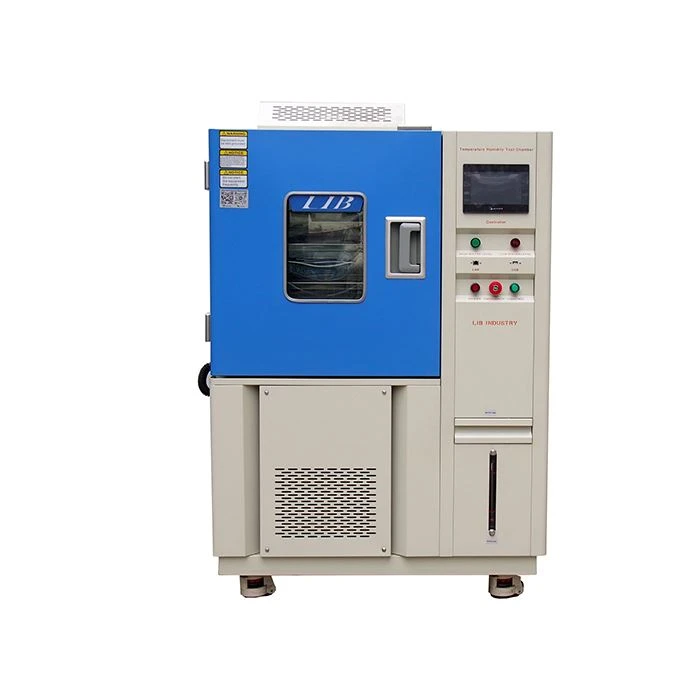

Environmental Climatic Chamber
Name:Environmental climatic chamber;
Temperature Range:-70 °C~+150 °C;
Refrigerant: R404A, R23;
Temperature Fluctuation: ± 0.5 ℃;
Heating rate:3 ℃ / min;
Temperature deviation:± 2.0 ℃;
Standard and Custom;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of environmental climatic chamber in China, featured by quality products and low price. Welcome to buy CE approved environmental climatic chamber in stock here and get quotation from our factory. Contact us for discount information.
LIB environmental climatic chamber can provide a uniform and stable temperature and humidity environment, which provides a guarantee for the reliability detection of products. It cools quickly and is filled with environmentally friendly refrigerants. Low failure rate and long service life.
Video
Technical Parameters
|
Model |
TH-100 |
TH-225 |
TH-500 |
TH-800 |
TH-1000 |
|
Internal dimension (mm) |
400*500*500 |
500*600*750 |
700*800*900 |
800*1000*1000 |
1000*1000*1000 |
|
Overall dimension (mm) |
860*1050*1620 |
960*1150*1860 |
1180*1350*2010 |
1280*1550*2110 |
1500*1550*2110 |
|
Capacity |
100L |
225L |
500L |
800L |
1000L |
|
Temperature range |
-20℃ ～+150 ℃ |
||||
|
Low type |
A: -40℃ B:-70℃ C -86℃ |
||||
|
Humidity Range |
20%-98%RH |
||||
|
Temperature deviation |
± 2.0 ℃ |
||||
|
Heating rate |
3 ℃ / min |
||||
|
Cooling rate |
1 ℃ / min |
||||
|
Controller |
Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
||||
|
Refrigerant |
R404A, R23 |
||||
|
Exterior material |
Steel Plate with protective coating |
||||
|
Interior material |
SUS304 stainless steel |
||||
|
Standard configuration |
1 Cable hole (Φ 50) with plug; 2 shelves |
||||
|
Timing Function |
0.1~999.9 (S,M,H) settable |
||||
Advantage Show
 |
 |
|
|
Touch screen controller System capacity:120 groups program X100 sections |
The cooling system Two compressors Using environmentally friendly refrigerants, |
Security Settings Emergency stop button Fault warning device |
|
|
|
Product Feature
1. According to the actual requirements of numerous temperature and humidity meter verification.
2. the use of double-layer high temperature resistant anti-aging silicone sealing strip, can effectively ensure that the experimental area is not affected by the external environment:
3. ultra-thick insulation layer, designed observation window vacuum glass, cold heat does not lose, to ensure the rapid and stable rise and cooling;
