Environmental Testing Chambers For PV Module
PV Test: Suits various size PV modules;
Test Temperature: 85℃±2℃;
Relative Humidity: 85%±5%;
Test Duration: 1000h;
Panel Capacity: 4 / 6 / 8 / 10 / 12 Pieces;
Standard: IEC61646,, IEC62688, UL1703,
Free calibration

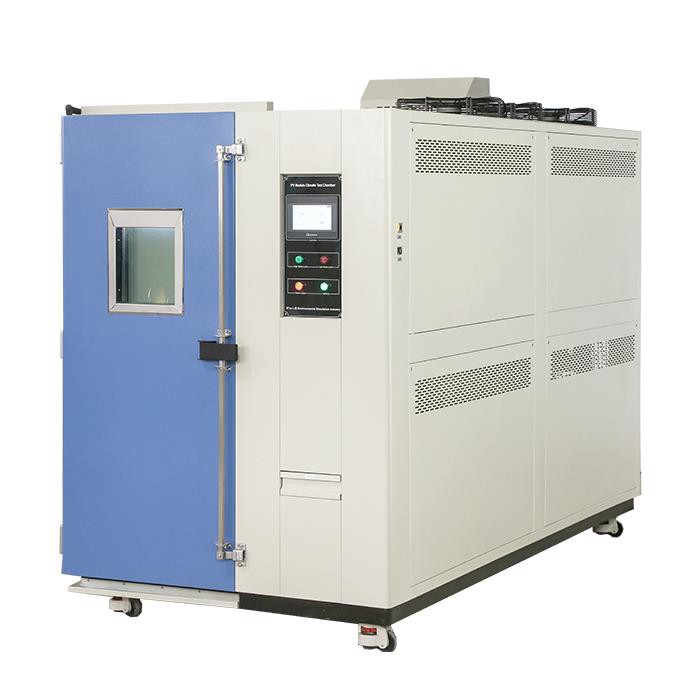

Environmental Testing Chambers For PV Module
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of environmental testing chambers for pv module in China, featured by quality products and low price. Welcome to buy CE approved environmental testing chambers for pv module in stock here and get quotation from our factory. Contact us for discount information.
LIB manufactures and provides solar panel testing chambers for testing various size PV modules. Environmental Testing Chambers for PV Module designed to meet solar panel test specifications for IEC, UL and ASTM for temperature cycling test, damp heat test and humidity freeze tests.
Basic Parameter
Model | PV-04 |
Internal Dimension | 1300*700*1350 |
Overall Dimension | 1900*1100*1750 |
Interior Volume | 1220L |
Temperature Range | -60℃～+100 ℃ |
Temperature Fluctuation | ± 0.5 ℃ |
Temperature Deviation | ± 2.0 ℃ |
Humidity Range | 20% ~ 98% RH |
Humidity Deviation | ± 2.5% RH |
Temperature Change Rate | 1~3.4 ℃ / min |
| Panel Size | 1m*2m |
| View Window Size | 330*370(mm) |
| Panel Capacity | 4 / 6 / 8 / 10 / 12 Pieces |
| Build-in Water Tank | 270*300*450(mm) |
● Cooling: Mechanical compression refrigeration system ● Heating Element: Nichrome heater ● Controller: Programmable color LCD touch screen controller;Ethernet connection, PC Link ● The heat load can absorb 1000W in -20℃ | ● Exterior Material: Steel Plate with a protective coating ● Interior Material: SUS304 stainless steel ● Thermal Insulation: Polyurethane foam and insulation cotton |
Panel Capacity 4 / 6 / 8 / 10 / 12 Pieces
touch screen controller;
Ethernet connection, PC Link
Standard Configuration 1 Cable hole (Φ 50,)
Testing Application
Environmental Testing Chambers For PV Module is widely used in various size PV modules.
