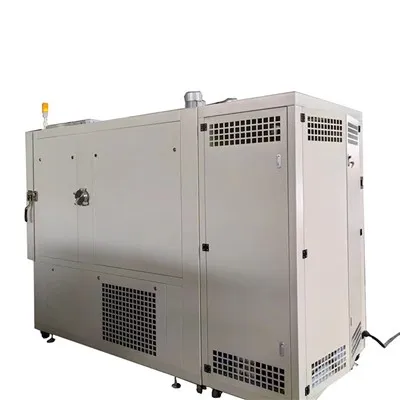

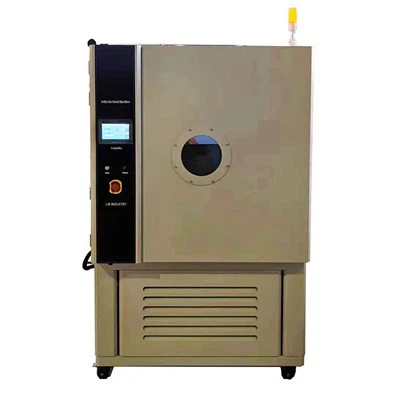

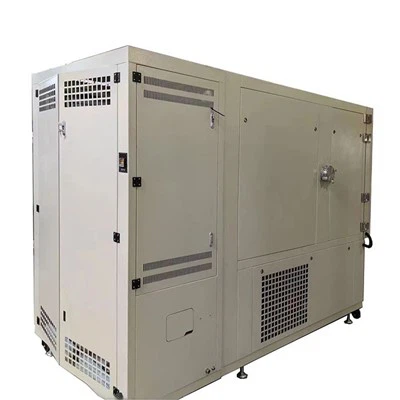

Environmental Pressure Test Chamber
Low Pressure Chamber has passed a number of international certifications including CE and RHOS to support third-party testing. You can customize the parameters. The machine adopts compressor imported from France, filled with environmental refrigerant, refrigeration power, high cooling rate and stable performance. Our products can add explosion-proof, vibration, low pressure and other functions, to provide you with cost-effective composite testing equipment.
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of environmental pressure test chamber in China, featured by quality products and low price. Welcome to buy CE approved environmental pressure test chamber in stock here and get quotation from our factory. Contact us for discount information.
environmental pressure test chamber are used more in aerospace and communication applications. It reduces air pressure by pumping air out of the workroom.
Product Introduction
Internal materials
The working chamber is made of extra-thick pressure-resistant plates, which are strong and durable.
View window
Due to the large pressure difference between inside and outside the working chamber, the observation window was designed to be small and circular to prevent the glass from exploding.
Sample Shelf
The standard load of each layer of the sample shelf is 50 kg, and the total load of the two layers is 100 kg. The height of the sample shelf is adjustable.
Temperature Sensor
The temperature probe is PT-100 class A with an accuracy of 0.001 and is installed in the upper right corner of the workroom.
The PID controller as the main control unit to command, operate, detect and redistribute the various components of the equipment to achieve maximum effective use.
Screen display function: LCD display, which can display test conditions (including temperature section, cycle number, running time and remaining time, etc.).
We have reserved a 50 mm (or 125 mm) diameter cable hole on the left side of the working chamber, through which the power cable is energized for the tested products.
Soft silicone plug seal; Metal enclosure closed, beautiful designed.
|
|
|
| Cable hole: special reinforcement to prevent ejection during testing. | Vacuum pump: decompression command within half an hour. |
|
|
|
| Water filter: water saving, and ensure that water quality can be used multiple times. | Operation interface: simple parameter setting process |
|
|
|
| Solenoid Valve | Electric control cabinet |
Product Parameter
| Product model | A-1000 |
| Internal dimensions | D 1500 W 1000 H 970 mm |
| External dimensions | D 2050 W 1300 H 2200 mm |
| Temperature range | -40℃ to +150℃ |
| Humidity range | 20% ~ 95% (more than 50Kpa can be controlled) |
| Temperature fluctuation | ≤ ±0.5℃ |
| Temperature deviation | ≤ ±2.0℃ |
| Temperature uniformity | ≤ 2.0℃ (under normal pressure and no load) |
| Heating rate | 3℃/min |
| Cooling speed | 2℃/min |
| Pressure range | Atmospheric pressure to 0.5kPa |
| Pressure deviation | ± 2Kpa |
| Depressurization time | Atmospheric pressure to 0.5k ≤30min |
| Pressure enclosure | Manganese steel, surface spray treatment |
| Other outer wall materials | Double-sided galvanized steel plate, surface spray treatment |
| Inner wall material | SUS304 stainless steel plate |
| Vacuum system | Vacuum pump, air pumping regulating valve, inflation regulating valve |
The standard parameters of the low pressure box are as above, you can contact us for non-standard customized information.
LIB Environmental is one of the professional and credible manufacturers of climatic and environmental testing chambers in China. Equipped with a professional factory, we can offer you environmental pressure test chamber with competitive price. Now we have high quality test chamber for sale, welcome to buy our test chamber at low cost and check the price with our supplier.
