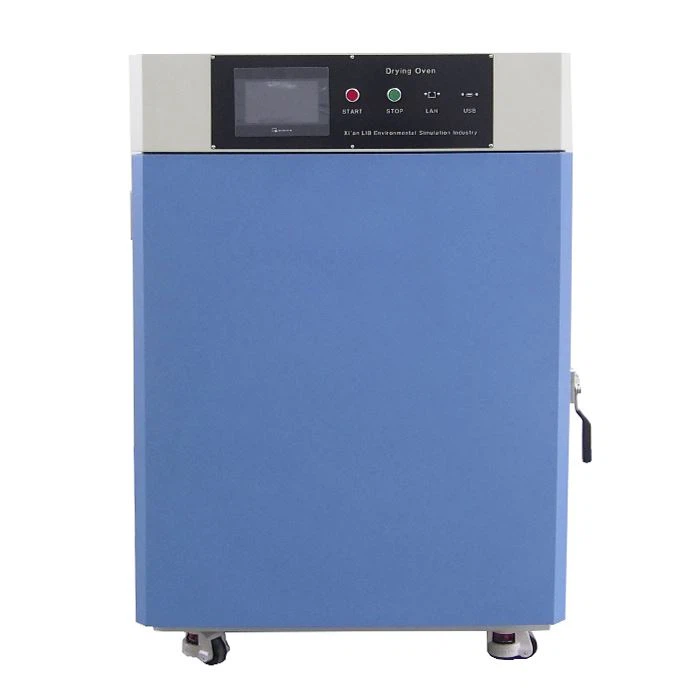

Heat Chamber
Heat chamber are an essential tool in numerous manufacturing processes across a wide range of industries. These ovens have become an integral part of manufacturing operations due to their many advantages and diverse application areas. One of the primary advantages of industrial heat chamber is...
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of heat chamber in China, featured by quality products and low price. Welcome to buy CE approved heat chamber in stock here and get quotation from our factory. Contact us for discount information.
Heat chamber are an essential tool in numerous manufacturing processes across a wide range of industries. These ovens have become an integral part of manufacturing operations due to their many advantages and diverse application areas.
One of the primary advantages of industrial heat chamber is that they offer consistent, precise, and controlled heat distribution. This is particularly important for certain manufacturing processes , for example drying, or baking of materials. Such processes include heat treating, annealing, tempering, powder coating, and drying of paints, inks, and adhesives.
Product Features
- Super thick insulation layer, reduce heat loss, ensure the safe temperature of the shell
- Superior production results due to very uniform temperature
- Galvanised steel, SUS304 stainless steel construction
- The unique hot air circulation allows for high drying efficiency
- The high level of automation helps to reduce labor costs while also improving the consistency and quality of the finished product.
Product Parameters
|
Model |
O-100 |
O-225 |
O-500 |
O-800 |
O-1000 |
|
|
Internal Dimension (mm) |
400*500*500 |
500*600*750 |
700*800*900 |
800*1000*1000 |
1000*1000*1000 |
|
|
Overall Dimension (mm) |
750*880*850 |
800*950*1000 |
1100*1100*1300 |
1100*1450*1400 |
1300*1400*1400 |
|
|
Interior Volume |
100L |
225L |
500L |
800L |
1000L |
|
|
Parameter
|
Temperature Range |
A: Ambient ～+250 ℃ B: Ambient ～+400 ℃ C: Ambient ～+900 ℃ |
||||
|
Temperature Fluctuation |
± 0.5 ℃ |
|||||
|
Temperature Deviation |
± 2.0 ℃ |
|||||
|
Heating Rate |
6 ℃ / min |
|||||
|

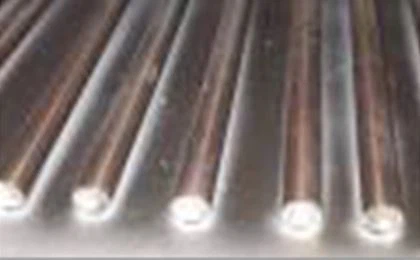

Heating Element |
Nichrome heater |
|||||
|

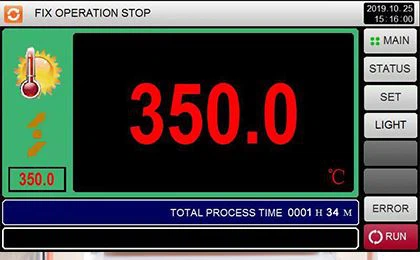

Controller
|
PID color LCD touch screen controller |
|||||
|
Ethernet connection, PC Link (Option) |
||||||
|
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ |
|||||
|
View Window Size (mm) |
120*150 |
|||||
|
Air Circulation |
Centrifugal wind fan |
|||||
|
Safety Device |
Over-temperature Protection; Over-current Protection; Phase Sequence Protection; Earth leakage Protection |
|||||
|
Material
|
Exterior Material |
Steel Plate with protective coating |
||||
|
Interior Material |
SUS304 stainless steel |
|||||
|
Thermal Insulation |
Polyurethane foam （Refractory brick） |
|||||
|
Observation Window |
Interior lighting, double-layer thermo stability silicone rubber sealing |
|||||
|
Standard Configuration |
2 shelves |
|||||
|
Power Supply |
380V 50Hz |
|||||
|
Maximum Noise |
65 dBA |
|||||
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
|||||
Product Structures
|
Heating system |

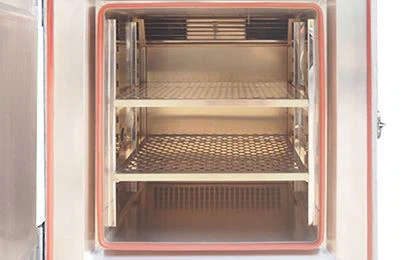

Workroom |
|
Controller System |

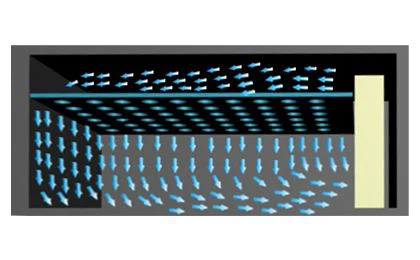

Air Circulation |
|
Custom size and shape |
USB and LAN |
◎ Warranty and Service
Provide 3 years warranty, lifelong follow-up services: If you have any questions during operation, we will supply solution to you with 24 hours.
