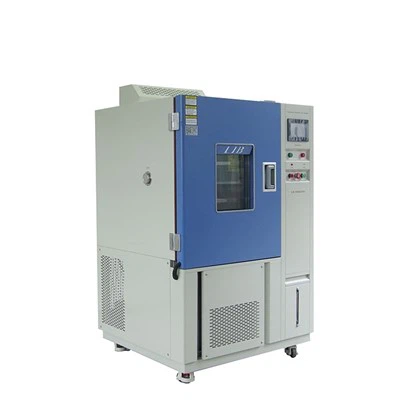

Heat Cold Pressure Climatic Chamber
Name:Heat cold pressure climatic chamber;
Temperature Range:-70°C~+150°C;
Model: TH-225;
Refrigerant: R404A, R23;
Temperature Fluctuation: ± 0.5 ℃;
Heating rate:3 ℃ / min;
Temperature deviation:± 2.0 ℃;
Standard and Custom;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of heat cold pressure climatic chamber in China, featured by quality products and low price. Welcome to buy CE approved heat cold pressure climatic chamber in stock here and get quotation from our factory. Contact us for discount information.
Heat cold pressure climatic chamber is also called temperature and humidity calibration chamber, specially developed by our company for the calibration of temperature and humidity meter. It can also be used to provide temperature and humidity testing for other industrial products.
Video
Technical Parameters
| Name | heat cold pressure climatic chamber | ||||
|
Model |
TH-225 |
||||
|
Internal dimension (mm) |
500*600*750 |
||||
|
Overall dimension (mm) |
960*1150*1860 |
||||
|
Capacity |
225L |
||||
|
Temperature range |
-20℃ ～+150 ℃ |
||||
|
Low type |
A: -40℃ B:-70℃ C -86℃ |
||||
|
Humidity Range |
20%-98%RH |
||||
|
Temperature deviation |
± 2.0 ℃ |
||||
|
Heating rate |
3 ℃ / min |
||||
|
Cooling rate |
1 ℃ / min |
||||
|
Controller |
Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
||||
|
Refrigerant |
R404A, R23 |
||||
Advantage Show
 |
 |
|
PID CONTROLLER System capacity:120 groups program X100 sections, required segmentation sections of each group can be arbitrarily divided and each program can freely link another. |
Two compressors Adopt double stage linkage compressor, cooling rate is fast, cooling rate is stable Environmentally friendly refrigerants: R404A, R23 |
 |
 |
Calibration Report
Offer CE and ISO 17025 calibration certificate for FREE
Temperature and humidity cabinets can custom-make according to different reques.
Product Feature
1. According to the actual requirements of numerous temperature and humidity meter verification.
2. the use of double-layer high temperature resistant anti-aging silicone sealing strip, can effectively ensure that the experimental area is not affected by the external environment:
3. ultra-thick insulation layer, designed observation window vacuum glass, cold heat does not lose, to ensure the rapid and stable rise and cooling;
