Humidity Environmental Simulation Chamber
Model: TH-800;
Interior Volume: 800L;
Temperature Range: -20℃～ +150 ℃;
Temperature Fluctuation: ± 0.5 ℃;
Humidity Range: 20% ~ 98% RH;
Maximum Noise 65dBA;
Multi - programmed controller;
Standard and Custom;
Name:Temperature Environmental Simulation Chamber;
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of humidity environmental simulation chamber in China, featured by quality products and low price. Welcome to buy CE approved humidity environmental simulation chamber in stock here and get quotation from our factory. Contact us for discount information.
Humidity environmental simulation chamber is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The comprehensive standard equipment for this environmental simulation chamber ensures ease of operation.
Product Parameters
Name | Humidity Environmental Simulation Chamber |
Model | TH-800 |
Internal dimension (mm) | 800*1000*1000 |
Overall dimension (mm) | 1280*1550*2110 |
Temperature range | -20℃ ～+150 ℃ |
Low type | Ⅰ: -40℃ Ⅱ:-70℃ Ⅲ: -86℃ |
Humidity range | 20% ~ 98% RH |
Temperature fluctuations | ± 0.5 ℃ |
Temperature deviation | ± 2.0 ℃ |
Humidity deviation | ± 2.5% RH |
Heating rate | 3 ℃ / min |
Cooling rate | 1 ℃ / min |
Controller | Programmable color LCD touch screen controller PC Link, R-232 interface |
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
Cooling system | Mechanical compression refrigeration system |
Exterior material | Steel Plate with protective coating |
Thermal insulation | Polyurethane foam |
Observation window | Interior lighting , double-layer thermo stability silicone rubber sealing |
Standard configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves |
Timing Function | 0.1~999.9 (S,M,H) settable |
Details
 | |

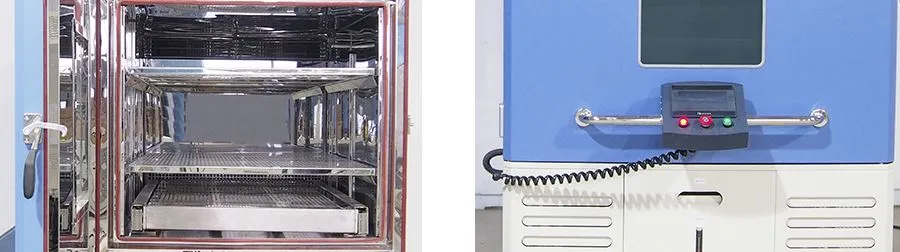

Workroom The internal material is 304 stainless steel, The test room is specially customized to meet the requirements of customers for testing metal detectors | Controller System The PID controller as the main control unit to command, The control screen is specially customized and designed on the door according to the equipment |
 | |
Important Characteristics
Relative Humidity environmental simulation chamber equip 1 access ports with silicone plugs
4 castors, two with brakes
Computer interface: Ethernet
230 V power socket on the right-side control panel (Models 115, 240, 720)
Alarm notification in the event of insufficient water in fresh water tank
Complete safety connection kit for water supply and drainage, up to 1 m height
Inner chamber made of stainless steel
CFC-free refrigerant R-232
Cooling with compressor cooling unit
Calibration
LIB will perform calibration before delivery, and engineers can be arranged for home service
Temperature and humidity calibration
Lab environmental simulation chamber,Expansion –Temperature and humidity calibration with 1 measuring point in center of chamber with 1 specified pair of values, including certificate
Maintenance
relative Humidity environmental simulation chamber,Maintenance service in accordance with maintenance schedule. Visual inspection of mechanical and electrical components, testing of all key functions.
