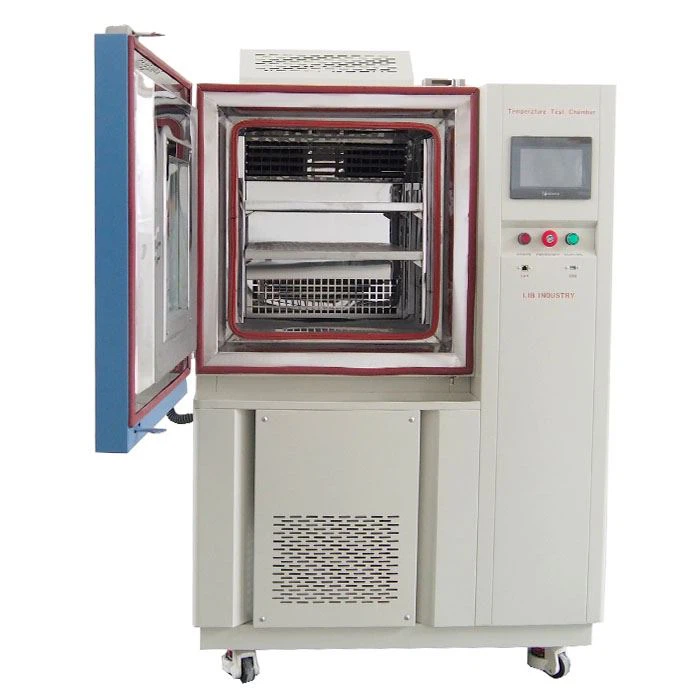

Fast Change Rate Thermal Cycle Chamber
Temperature Range:-20℃ ～+150 ℃;
Model: T-225;
Refrigerant: R404A, R23;
Temperature Fluctuation: ± 0.5 ℃;
Heating rate:3 ℃ / min;
Temperature deviation:± 2.0 ℃;
Standard and Custom;
Name:Fast Change Rate Thermal Cycle Chamber
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of fast change rate thermal cycle chamber in China, featured by quality products and low price. Welcome to buy CE approved fast change rate thermal cycle chamber in stock here and get quotation from our factory. Contact us for discount information.
Fast change rate thermal cycle chamber ,Over 29 different models let you choose size, configuration and performance to suit many types of environmental test conditions. Temperature change rates from 1 to 15°C/min.
Low temperature available: A: -20 degree, B: -40 degree, C: -70degree , D: -86degree.E:-200 degree( liquid nitrogen refrigeration.
Technical Parameters
| Name | Fast Change Rate Thermal Cycle Chamber | ||||
Model | T-100 | T-225 | T-500 | T-800 | T-1000 |
400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 | |
860*1050*1620 | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 | 1500*1550*2110 | |
Capacity | 100L | 225L | 500L | 800L | 1000L |
Temperature range | -20℃ ～+150 ℃ | ||||
Low type | A: -40℃ B:-70℃ C -86℃ | ||||
Temperature fluctuations | ± 0.5 ℃ | ||||
Temperature deviation | ± 2.0 ℃ | ||||
Heating rate | 3 ℃ / min | ||||
Cooling rate | 1 ℃ / min | ||||
Controller | Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB | ||||
Refrigerant | R404A, R23 | ||||
Exterior material | Steel Plate with protective coating | ||||
Interior material | SUS304 stainless steel | ||||
Standard configuration | 1 Cable hole (Φ 50) with plug; 2 shelves | ||||
Timing Function | 0.1~999.9 (S、M、H) settable | ||||
Advantage Show
 |  |

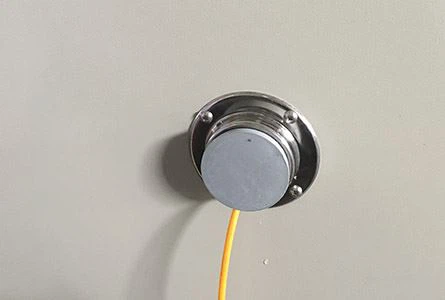

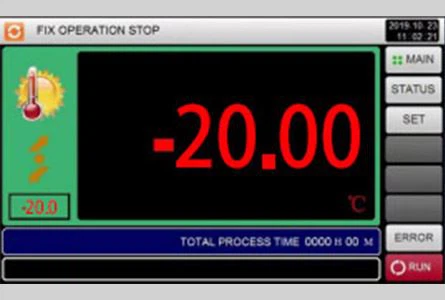

Controller PID programmable color touch screen controller, network connection computer; Can edit 100 programs 20 segment; LIB also can preset program into the controller based on user testing requirements; The set system language is English for standard. | Cable Hole Fast change temperature chamber The standard inner hole diameter is 50mm. Soft silicone plug seal; Metal enclosure closed, beautiful designed. |
Rapid rate temperature chamber,Included are ultra low temperature test chamber, fast temperature change rate chambers (15℃/min) and liquid nitrogen refrigeration test chamber.
low temperature test chamber,To perform cold resistance test, thermal cycling test, ultra low temperature test, high temperature test, storage condition, and calibration function.
Features
▼Wide temperature ranges and volume selection
▼Temperature change reate 10℃/min （15℃/min）
▼Reliable performance
▼Temperature control and display unit
▼Programmable color LCD touch screen controller
▼Multi-language interface
▼USB and Ethernet
▼Mechanical compression refrigeration system
▼Casters, shelf, and cable port are standard
▼Adjustable and removable sample shelves
▼Safety protection system
▼CE mark, ISO17025 calibration
