Laboratory Thermal Resistance Chamber
Temperature Range: -70℃～+150℃;
Temperature Fluctuation: ± 0.5 ℃;
Temperature Deviation: ± 2.0 ℃;
Cooling Rate: 1 ℃ / min;
Heating Rate: 3 ℃ / min;
Material: SUS304 stainless steel;
Volume: 100L-1000L;
Safety Protection Device ;
Programmable color touch screen controller;
Name: Laboratory Thermal Resistance Chamber
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of laboratory thermal resistance chamber in China, featured by quality products and low price. Welcome to buy CE approved laboratory thermal resistance chamber in stock here and get quotation from our factory. Contact us for discount information.
Laboratory Thermal Resistance Chamber can be used for laboratory temperature testing, the highest temperature can be simulated to 150 ℃. The equipment controller system can edit 100 programs, 100 segments. The controller displays the running time, number of segments, remaining time, repetition frequency in real time, and can display experimental data, including preset segment time, heating status, calendar time, etc.
Product Parameters
| Name | Laboratory Thermal Resistance Chamber | ||||
Model | T-100 | T-225 | T-500 | T-800 | T-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 860*1050*1620 | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 | 1500*1550*2110 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃; B : -40℃ ～ +150 ℃; C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Refrigerant | R404A, R23 | ||||
Heating Element | Nichrome heater | ||||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | |||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
| Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | ||||
Power Supply | 220V 50Hz / 380V 50Hz | ||||
Maximum Noise | 65 dBA | ||||
Environmental Conditional | 5℃～+35 ℃ ≤85% RH | ||||
Product Fetures
▲ Temperature Range: A-20℃～+150℃, B-40℃～+150℃, C-70℃～+150℃;
▲ Temperature Sensor: PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃;
▲ Programmable color LCD touch screen controller, ethernet connection, PC Link;
▲ Model: T-100, T-225, T-500, T-800, T-1000;
▲ Heating Element：nichrome heater;
▲ Standard and customzied
Product Structures
Insulation |
Air Circulation |
Controller System |
Temperature Sensor |

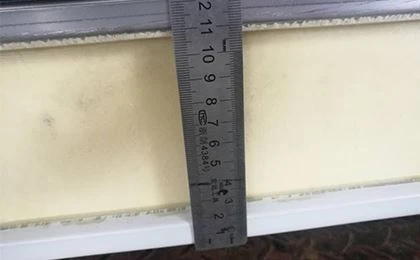

Insulation
10cm thick polyurethane foam and insulation cotton;
Better insulation performance, degradation resistance, environmental protection, noise reduction.
Air Circulation
The high-quality centrifugal fan is used to strongly supply air circulation, making the temperature distribution in the test area uniform.

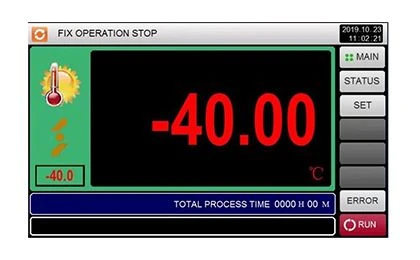

Controller System
The PID controller as the main control unit to command, operate, detect and redistribute the various components of the equipment to achieve maximum effective use.
Temperature Sensor
PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees.
◎ Safety Product Devices
Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection
◎ Workroom
The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion; Nice ruggedness and long life.
◎ Warranty & Service
3 Years Warranty, Lifelong Follow-up Services
Professional After-sales Team. If you have any questions during operation, we will supply solution to you with 24 hours.
