Rapid Rate Thermal Cycle Chamber
Temperature Range: -70℃～+150℃;
Temperature Fluctuation: ± 0.5 ℃;
Temperature Deviation: ± 2.0 ℃;
Material: SUS304 stainless steel;
Configuration with four removable casters;
Mechanical compression refrigeration system;
Standard & customized;
Volume: 100L, 225L, 500L, 800L, 1000L;
Name: Rapid Rate Thermal Cycle Chamber
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of rapid rate thermal cycle chamber in China, featured by quality products and low price. Welcome to buy CE approved rapid rate thermal cycle chamber in stock here and get quotation from our factory. Contact us for discount information.
Rapid Rate Thermal Cycle Chamber is widely used in automobiles, batteries, electronic materials, military and aerospace fields. Can achieve rapid temperature rise, using nickel-chromium alloy heating tube, the temperature rise rate is 3 ℃ / min, PTR Platinum Resistance PT100Ω/MV A-class and accuracy 0.001℃ temperature sensor.
Product Parameters
| Name | Rapid Rate Thermal Cycle Chamber | ||||
Model | T-100 | T-225 | T-500 | T-800 | T-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 860*1050*1620 | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 | 1500*1550*2110 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃; B : -40℃ ～ +150 ℃; C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Refrigerant | R404A, R23 | ||||
Heating Element | Nichrome heater | ||||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | |||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
| Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | ||||
Power Supply | 220V 50Hz / 380V 50Hz | ||||
Maximum Noise | 65 dBA | ||||
Environmental Conditional | 5℃～+35 ℃ ≤85% RH | ||||
Product Fetures
° Temperature Range: A-20℃～+150℃, B-40℃～+150℃, C-70℃～+150℃;
° Temperature Sensor: PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃;
° Programmable color LCD touch screen controller, ethernet connection, PC Link;
° Soft silicone plug seal and metal enclosure closed cable hole;
° SUS304 stainless steel punching sample shelf 2pcs;
° Double layer insulating glass view window with 8cm thick
Product Structures
Temperature Sensor |
Cooling System |
Cable Hole |
Workroom |
Temperature Sensor
PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees.
Cooling System
After the liquid refrigerant absorbs the heat of the cooled object in the evaporator, it is vaporized into low-temperature and low-pressure steam, sucked by the compressor, compressed into high-pressure high-temperature steam, discharged into the condenser, and radiated to the cooling medium in the condenser, condensed into a high-pressure liquid, throttling through a throttle valve into a low-pressure low-temperature refrigerant, and again entering the evaporator to absorb heat and vaporize, to achieve the purpose of cycle refrigeration.

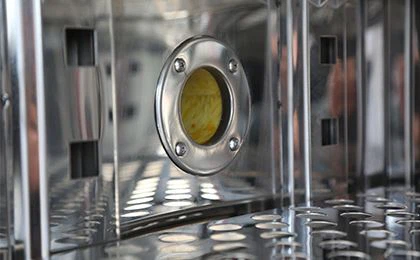

Cable Hole
Astandard test hole, located at the left side of the work room, is provided with a sleeve inside to prevent moisture from entering the insulation layer. Equipped with flange. The standard inner hole diameter is 50mm. Soft silicone plug seal; Metal enclosure closed, beautiful designed.
Workroom
The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion; Nice ruggedness and long life.
Temperature and Humidity Sensor: PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees.
External Materials: A3 steel plate with galvanized coating; Electrostatic treatment; High and low temperature corrosion resistance; High hardness, anti-impact. Very high safety factor; Color can be customized.
Wiring System: Voltage 380V 50Hz 3 phase. L1, L2, L3, PE, N, grounding protection. Standard 2m long cable.
Viewing Window: Double layer insulating glass 8 cm thick, made of tempered glass. The conductive film is located on the interior glass to prevent window frosting, built-in LED light for the work room lighting; can clearly observe samples.The light control button is located below the controller.
Warranty and Service: Provide 3 years warranty, lifelong follow-up services: If you have any questions during operation, we will supply solution to you with 24 hours.
