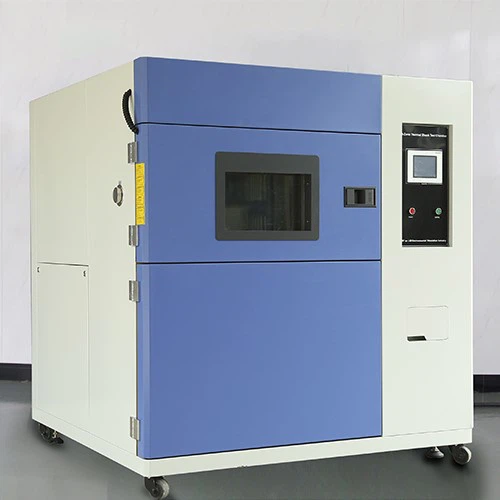

Temperature Shock Chamber

Name: Temperature Shock Chamber Manufacturers, Suppliers, Factory - Cost Price - LIB Industry
Brand: LIB Environmental Simulation Industry
SKU: 216796772

Name:Temperature Shock Chamber;
Model:TS-340;
Upper limit preheat temperature: +220℃;
Lower limit pre-cool temperature:-75℃;
Volume of test room : 72L;
Recovery time: Within 5 minutes;
Refrigerant: Environmentally friendly refrigerant;

Send Inquiry

Description

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of temperature shock chamber in China, featured by quality products and low price. Welcome to buy CE approved temperature shock chamber in stock here and get quotation from our factory. Contact us for discount information.

2-Zones Temperature Shock Chamber is an important tool used in various industries including electronics, automotive, aerospace, and medical. They are used to test the durability of electronic components, mechanical parts, and materials under extreme temperature conditions.

Product Specification

Name	2-Zones Temperature Shock Chamber
Model	TS-500
Inner dimensions of test room	650650500 mm
Volume of test room	211L
Upper limit preheat temperature	+220℃
Heating time	Ambient temperature to ~ + 200℃
Lower limit pre-cool temperature	-75℃
Cooling time	Ambient temperature to -70℃
High temperature exposure range	Ambient temperature to +200 °C
Low temperature exposure range	–65 to -5 °C
Temperature fluctuation	≤±0.5℃
Temperature deviation	≤±3 ℃

Product Structures

Temperature Shock Chamber 2

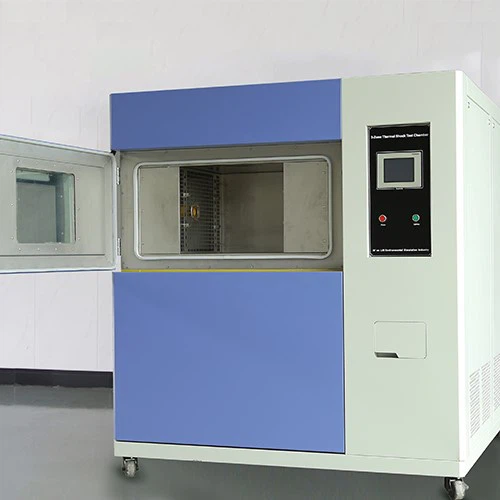

Specimen basket

The specimen automatic transferred from cold chamber to hot chamber by basket. The basket slides vertically and smoothly through rails, to make the specimen is exposed to the two chambers.

Intelligent control

The computer can be connected to the device via a LAN port or Wi-Fi, so you can monitor the machine remotely without leaving the office.

Temperature Shock Chamber 4

temperature shock chamber: cooling system

Temperature Shock Chamber 1

Cooling mode
Conventional models of temperature shock chambers are air-cooled, while large or walk-in ones need to use water cooling to achieve more powerful cooling.

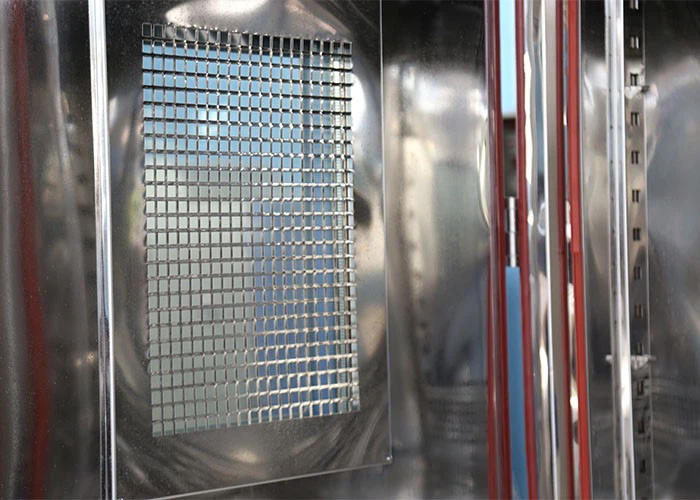

Explosion-proof view window

Since the samples tested by the temperature shock chamber need to be subjected to high and low temperature rapid impact, there is a certain risk of explosion, and the observation window is reinforced with explosion protection.

Features

1. LIB selects the most suitable cooling method according to the product model to ensure a stable cooling effect.

2. LIB can customize the special impact chamber for you according to your test parts.

3. Important parts are purchased from international well-known brands, reliable quality. If you need to replace certain wearing parts, you can easily find the same type in your country.

4. LIB can write test programs for you for free, making it easier for you to operate the machine.
