Thermal Cycling Environmental Chamber
Model:TK10-220;
Internal Dimension:500*600*750 (mm);
Temperature Range:-70℃ ～+150 ℃;
Cooling Rate:10℃/min (15℃/min);
Heating rate:10℃/min (15℃/min);
Temperature Fluctuations :± 0.5 ℃;
Temperature deviation:± 2.0 ℃;
Interior Volume:220 liters;
Interior Material:SUS304 stainless steel;
Name:Thermal Cycling Environmental Chamber;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of thermal cycling environmental chamber in China, featured by quality products and low price. Welcome to buy CE approved thermal cycling environmental chamber in stock here and get quotation from our factory. Contact us for discount information.
Thermal cycling environmental chamber is suitable for the whole product, parts and materials for high temperature, low temperature, high and low temperature circulating, and constant humidity and cyclic damp heat test.
Thermal cycling climate chamber mainly used to simulate the product in climate conditions, a temperature and humidity conditions or at ambient temperature and humidity conditions, detecting the product features and the adapt change ability.
Video
Product Parameters
| Name | Thermal Cycling Environmental Chamber |
| Model | TK10-220 |
| Internal Dimension (mm) | 500*600*750 |
| Overall Dimension (mm) | 960*1150*1860 |
| Temperature Range (℃) | -70℃ ～+150 ℃ |
| Cooling Rate | 10℃/min （15℃/min） |
| Heating rate | 10℃/min （15℃/min） |
| Temperature Fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Interior Volume | 220 liters |
| Controller | Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
| Cooling System | Mechanical compression refrigeration system |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Power Supply | 380V |
| Maximum Noise | 65 dBA |
Details
| |
Workroom The internal material is 304 stainless steel, The test room is specially customized to meet the requirements of customers for testing metal detectors | Controller System The PID controller as the main control unit to command, The control screen is specially customized and designed on the door according to the equipment |
| |

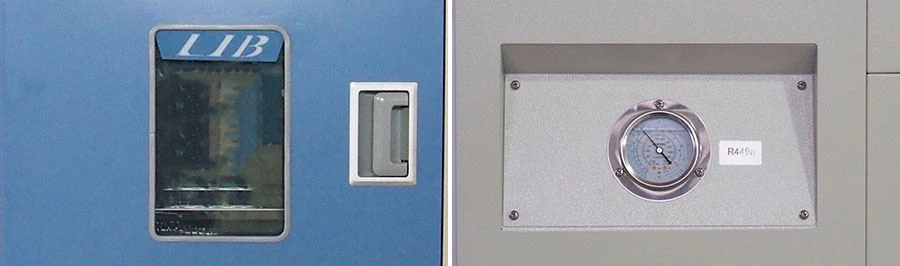

Observation Window The observation window with conductive film and lamp can clearly observe the changes of the sample | Refrigerating System High temperature aging Chamber,Bipolar linkage refrigeration system, so that the temperature of the studio is more accurat |
Temperature Range
Temperature change rates:
1 to 15°C/min.
Low temperature available:
A: -20℃, B: -40℃, C: -70℃ , D: -86℃.
E:-200℃( liquid nitrogen refrigeration.
Temeprature fast change environmental chamber included are ultra low temperature test chamber, fast temperature change rate chambers (15℃/min) and liquid nitrogen refrigeration test chamber.
Advantages
1. Environmental stress screening test chamber Can perform a rapid temperature change, condensation test, high temperature and humidity test, temperature and humidity cycling test, etc.
2. Fast change temperature and average temperature these two kinds of test methods
3. Temperature Change Test Chamber Can set a variety of stress screening (fast temperature change rate) 5deg C/min, 10deg C/min, 15deg C/min experimental conditions
4. Meet the requirements of stress screening test for electronic equipment MIL-STD-2164, MIL-344A-4-16, MIL-2134A-19, NABMAT-9492...etc.
5. Multi-language selection:English, Russian, Korean,German multilingual language switching.
Thermal change environmental chamber is the aviation, automobiles, home appliances, research and other fields necessary test equipment.
Contact us for spare parts!
