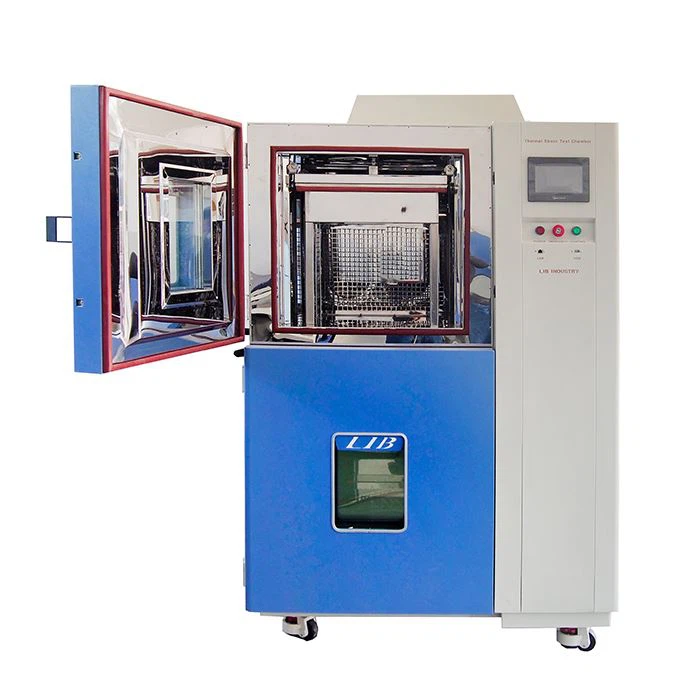

Thermal Cycling Equipment
Name:Thermal Cycling Equipment;
Model:TS-340;
Upper limit preheat temperature: +220℃;
Lower limit pre-cool temperature:-75℃;
Volume of test room : 211L;
Recovery time: Within 15 minutes;
Power Supply: 380V 50HZ;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of thermal cycling equipment in China, featured by quality products and low price. Welcome to buy CE approved thermal cycling equipment in stock here and get quotation from our factory. Contact us for discount information.
Thermal cycling equipment suitable for high and low temperature cold and thermal shock tests on electrical, electronic and other products, parts and materials, and can meet environmental tests such as electrical and electronic products and military equipment.
Video
Specification
| Name | Thermal Cycling Equipment | |
| Model | TS-340 | |
| Inner dimensions of test room (mm) | 450*450*360 | |
| Overall dimensions(mm) | 1710*1020*1845 | |
Pre-heat room
| Upper limit preheat temperature | +220℃ |
| Heating time | Ambient temp. to ~ + 200℃, within in 30 minutes. | |
Pre-cool room | Lower limit pre-cool temperature | -75℃ |
| Cooling time | Ambient temp. to ~ -70℃, within in 30 minutes | |
| Test room | High temp. exposure range | Ambient temp. +20 to +200°C |
| Low temp. exposure range | –65 to -5°C | |
| Recovery time | Within 15 minutes | |
| Temperature fluctuation | ≤±0.5℃ | |
| Temperature deviation | ≤±3 ℃ | |
| Controller | Programmable color LCD touch screen controller | |
| Cooling system | Mechanical compression refrigeration system | |
| Refrigerating unit | French TECUMSEH compressor | |
| Refrigerant | R404A, R23 | |
| Air circulation | Centrifugal wind fan | |
| Exterior material | Steel Plate with protective coating | |
| Interior material | SUS304 stainless steel | |
| Power Supply | 380V 50HZ | |
| Environmental conditional | 5℃～+40 ℃ ≤85% R | |
Structure
 |  |
| Programmable Controller | Test Area |
 |  |
Structure Features
●Operating the integrated control panel
Temperature cycling equipment，USB2.0 port, RS-232 communication port, light button switch
●Inner Size
Thermal shock equipment, Customizable inner box material #SUS304 stainless steel inner box, doors are attached with silicone seals, hanging baskets can move up and down in high and low temperature areas.
●External Test Holes can be Customized
With soft anti-aging rubber plug and external metal cover Standard 1 450mm or 1 100mm hole position Test hole size, position and quantity can be customized Test samples can be externally powered for load test
