Thermal Environmental Machine

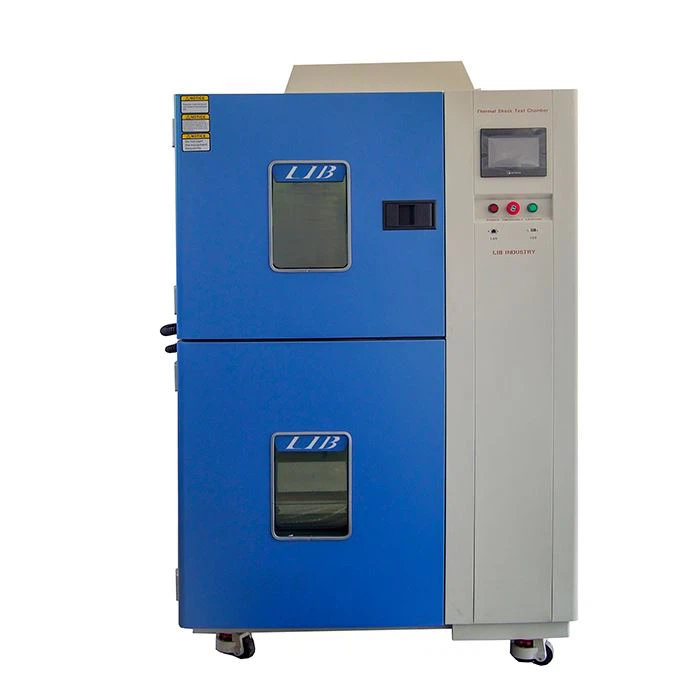

Name:Thermal Environmental Machine
Temperature Range:-20℃ ～+150 ℃;
Model: TK-220;
Cooling Rate: 10℃/min (15℃/min);
Heating Rate: 10℃/min (15℃/min);
Temperature Fluctuation: ± 0.5 ℃;
Temperature deviation:± 2.0 ℃;
Standard and Custom;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of thermal environmental machine in China, featured by quality products and low price. Welcome to buy CE approved thermal environmental machine in stock here and get quotation from our factory. Contact us for discount information.
Description
The Thermal Environmental Machine adopts the method of alternate heating and cooling to conduct temperature shock test on the test samples.
Environmental test machine check whether the physical and chemical properties of the test sample will change during thermal expansion and contraction, thus affecting the performance of the test sample
Product Parameters
Name | Thermal Environmental Machine |
Model | TS-500 |
Inner dimensions of test room | 650*650*500 mm |
Volume of test room | 211 L |
Load of test room | 50 kg |
Upper limit preheat temperature | +220 ℃ |
Heating time | Ambient temperature to ~ + 200 ℃, within in 30 minutes. |
Lower limit pre-cool temperature | -75℃ |
Cooling time | Ambient temperature to ~ -70 ℃, within in 30 minutes |
High temperature exposure range | Ambient temperature +20 to +200 °C |
Low temperature exposure range | –65 to -5 °C |
Recovery time | Within 15 minutes |
Temperature fluctuation | ≤±0.5℃ |
Temperature deviation | ≤±3 ℃ |
Controller | Programmable color LCD touch screen controller |
Cooling system | Mechanical compression refrigeration system |
Exterior material | Steel Plate with protective coating |
Observation window | Interior lighting , double-layer thermo stability silicone rubber sealing |
Power Supply | 380V 50HZ |
Product Structures
Test Area
controller
Window of observation
Advantage
●Quick temperature recovery
The thermal shock chamber has preheat room and pre-cool room, which achieves temperature recovery time within 5 minutes.
●Elevator transfer system
Temperature shock chamber Pneumatically lift the basket, the moving time is within 3 seconds. The basket is equipped with a lifting track to ensure the stability during moving.
