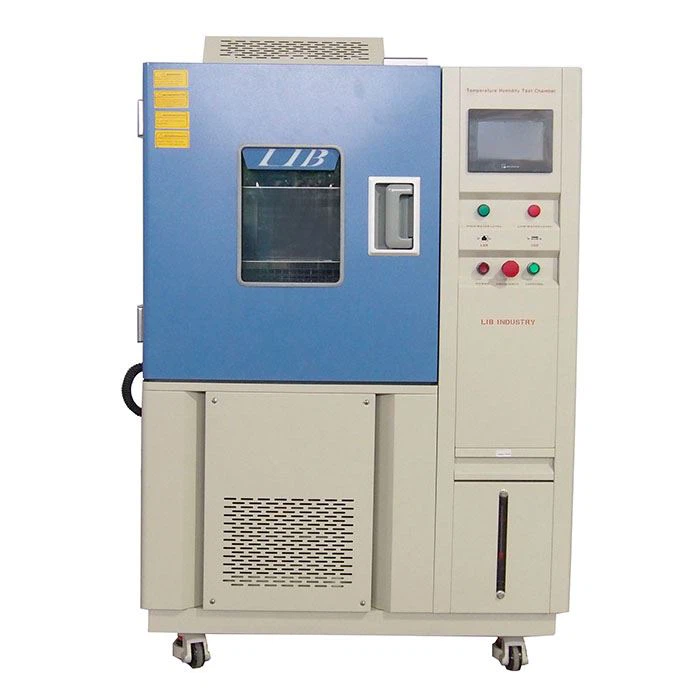

Condensation Climate Test Chamber
Temperature Range: 10℃ ～ +60 ℃;
Humidity Range: 95%RH ~ 100%;
Sample shelf:1pc sample shelf + 1pc round bar ;
Water trough: Build-in water trough in testing room;
Controller: Ethernet connection, USB port;
Water supply system: Automatic water supply;
Cable hole: Dia50mm port on left side, with plug;
Name: Condensation Climate Test Chamber;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of condensation climate test chamber in China, featured by quality products and low price. Welcome to buy CE approved condensation climate test chamber in stock here and get quotation from our factory. Contact us for discount information.
LIB INDUSTRY Condensate climate test chamber designed and manufactured,comply with ISO 6270-1: 2017, ASTM D4585 and BS 3900-F9 test standards. The machine will be used to evaluate the moisture resistance of the coating system and its similar products in the high humidity environment of continuous condensation.
The condensation test machine simulates rain and dew damage to the coating by producing continuous condensation on the surface of the sample under test.
ISO6270-2 Standard
condensation environmental machine
Paints and Varnishes- Determination of resistance to humidity-
Part 2: Condensation (in cabinet exposure with heated water reservoir)
Product Parameters
Name | Condensation Climate Test Chamber |
Model | ATH-100A |
Internal dimension (mm) | 400*500*500 D*W*H |
Overall dimension (mm) | 900*1050*1620 D*W*H |
Temperature range | 10℃ ～ +60 ℃ |
Humidity range | 95%RH ~ 100% |
Cooling Rate | 1°C / min |
Heating Rate | 3°C/ min |
Testing room roof | Slope shape designed, to avoid condensate drop on samples |
Sample shelf | 1pc sample shelf + 1pc round bar |
Water trough | Build-in water trough in testing room |
Controller | Programmable color LCD touch screen controller Ethernet connection, USB port |
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
Humidity sensor | Dry and wet bulb sensor |
Air circulation | Centrifugal wind fan |
Water supply system | Automatic water supply; Water purification system |
Exterior material | Steel Plate with protective coating |
| Standard configuration | Dia50mm port on left side, with plug |
Details
|
|
Workroom ●The internal material is 304 stainless steel, mirror surface, corrosion resistance ●Rust-proof to high and low temperature and moisture corrosion; ●●Nice ruggedness and long life. Water drain hole at side of workroom ●Top of testing room with pressure relief vent ●Slope shape designed, to avoid condensate drop on samples | Viewing Window ●Condensate huimidity Test Chamber ●Double layer insulating glass 8cm thick. ●Window made of tempered glass. ●The conductive film is located on the interior glass to prevent window frosting. ●Built-in LED light for the work room lighting ;can clearly observe samples. ●The light control button is located below the controller. |
 |  |
