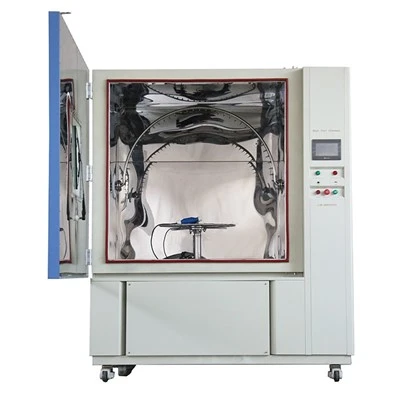

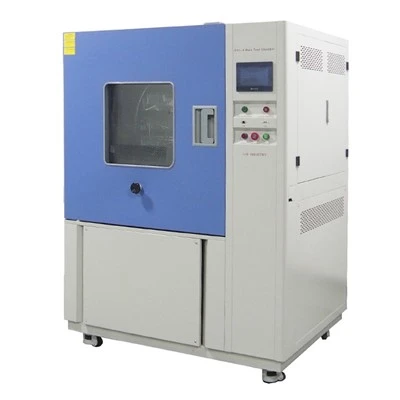

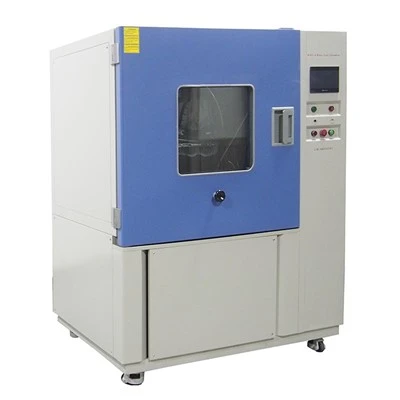

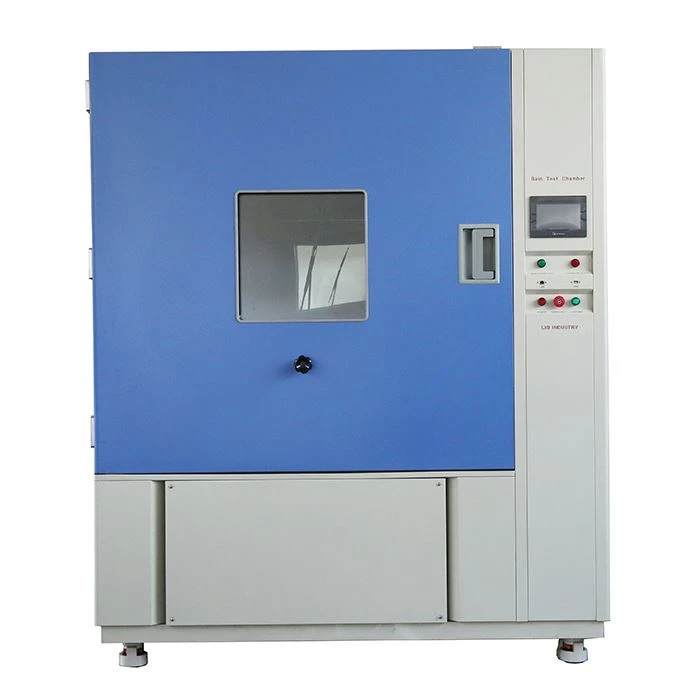

Ipx4 Waterproof Test Device
Name: IPX4 Waterproof Tester;
IP Rating: IPX3 IPX4 Test ;
Application: Lamps, Electric cabinets;
Standard:IEC 60529, ISO20653;
Water System: Water Circulation System;
Turntable: 1r/min Adjustable;
Door Lock: Electromagnetic lock;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ipx4 waterproof test device in China, featured by quality products and low price. Welcome to buy CE approved ipx4 waterproof test device in stock here and get quotation from our factory. Contact us for discount information.
IPX4 waterproof test device with IPX34 is used to simulating the lighting, auto parts, household appliances and other products in condition of moisture or rain, to see the influence of water to the products. Through this can test the resistance to the rain penetration and moisture proof ability of products.
Specification
| Name | IPX4 waterproof test device | |
|
Model |
R-800C |
R-1200C |
|
Internal Dimensions (mm) |
900*900*900 |
1400*1400*1400 |
|
Overall Dimensions (mm) |
1120*1460*1660 |
1600*1950*2100 |
| Swing Angle of Oscillating Tube |
0 ~ ±180° (Adjustable)(IPX3 IPX4) |
|
|
Turntable Rotation Speed |
1r/min (Adjustable) |
|
|
Oscillating Tube Radius |
400 mm (IPX3 IPX4) |
|
|
Controller |
Programmable color LCD touch screen controller |
|
|
Ethernet connection, PC Link, USB |
||
|
Water supply system |
Water tank, booster pump, Automatic water supply, Water purification system |
|
|
Exterior Material |
Steel Plate with protective coating |
|
|
Interior Material |
SUS304 stainless steel |
|
|
Standard |
IEC 60529, ISO20653 |
|
Test sample
IPX4 waterproof test device with waterproof functions, such as electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.)
Details
 |
 |

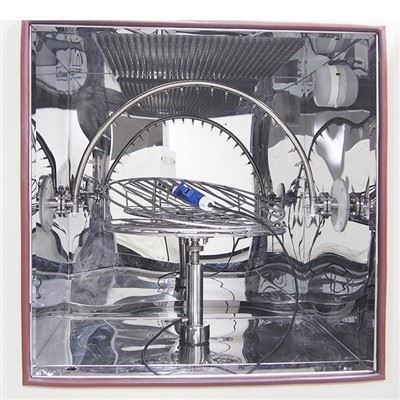

| Oscillating Tube | Turntable |
◆Optional, stainless steel
◆Needle hole：Φ0.4 mm
◆Included angle of two holes：IPX3: 120°; IPX4: 180°
◆Pendulum angle：IPX3: 120°(±60°); IPX4: 350°(±175°)
◆Raining speed
IPX3: 4 s/time(2×120°);
IPX4: 12 s/time(2×350°);
◆Water flow：1-10L/min adjustable
