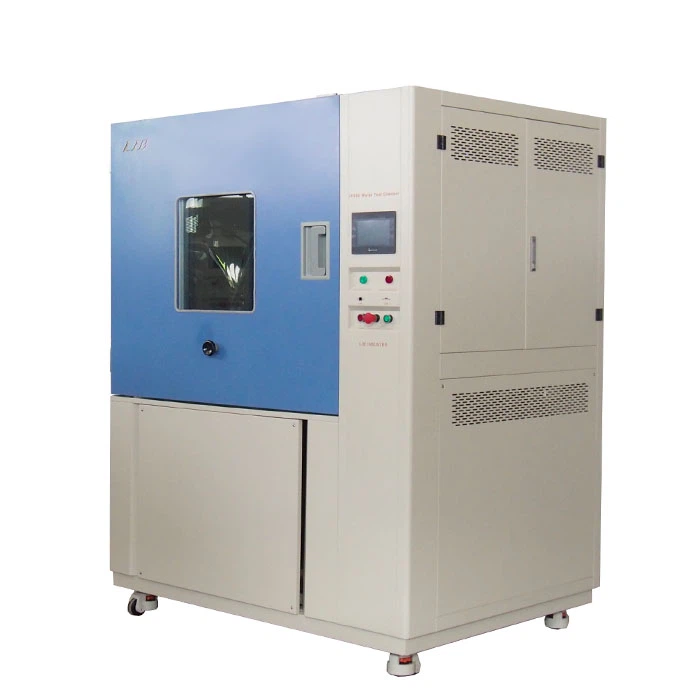

IPX9K Testing Chamber
Name:IPX9K Testing Chamber；
Standard: ISO20653,IEC60529；
Water Spray Temperature: Ambient ~ +88℃；
Water Spray Pressure: 8000-10000Kpa；
Spray Nozzle: four, 30 Seconds each position；
Water Flow Rate: 14L-16L/min；
Testing Platform Height: 200-400 nm (Adjustable)；
Standard & customized；
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ipx9k testing chamber in China, featured by quality products and low price. Welcome to buy CE approved ipx9k testing chamber in stock here and get quotation from our factory. Contact us for discount information.
IPX9K testing chamber is test equipment for testing the waterproof performance of products or materials.
IPX9K water spray test chamber is suitable for testing the waterproof performance of automobile lamps, rain fans, waterproof strips, locomotive instruments and low-voltage electrical enclosure protection.
Video
Parameters
| Name | IPX9K Testing Chamber |
Type | R9K-1200 |
Internal Dimensions (mm) | 1000*1200*1000 |
Overall Dimensions (mm) | 1250*1700*2050 |
Interior Volume (L) | 1200 |
Water Spray Angle | 0°, 30°, 60°, 90° |
Water Spray Temperature | Ambient ~ +88℃ (Adjustable) |
Spray Nozzle | Four, 30 Seconds each position |
Distance from Water Spraying to Specimens | 10~15cm |
Water Pressure | 8000-10000 Kpa (Adjustable) |
Water Flow Rate | 14L-16L/min |
Test Platform Speed | 5±1 r.p.m |
Test Platform Height | 200-400 nm (Adjustable) |
Testing Platform Diameters | 600mm |
Temp. Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Observation Window | Double layer insulating glass with wiper |
Power Supply | 380V 50Hz |
Maximum Noise | 65 dBA |
Environmental Conditional | 5℃～+35 ℃ 40%~85% RH |
Standard | IEC 60529; ISO20653; DIN 40050-9; USCAR-2; GMW-3191 |
Characteristic
 |  |
| Floodlight | Test Area |
1.Structure
The IPX9K test chamber is in the form of a whole structure. The high-pressure water pump and high temperature water storage tank are located at the bottom of the back of the test box, and the control system is located at the front of the chamber.
2. The turntable
The rain test chamber adopts the sample table with adjustable speed. The turntable uses stepper motor, the speed and Angle can be set adjustable on the touch screen,
3. Observe the sample
The IPX9K testing chamber adopts window transparent design, and is equipped with LED lighting, convenient for users to directly observe the test in the box.
