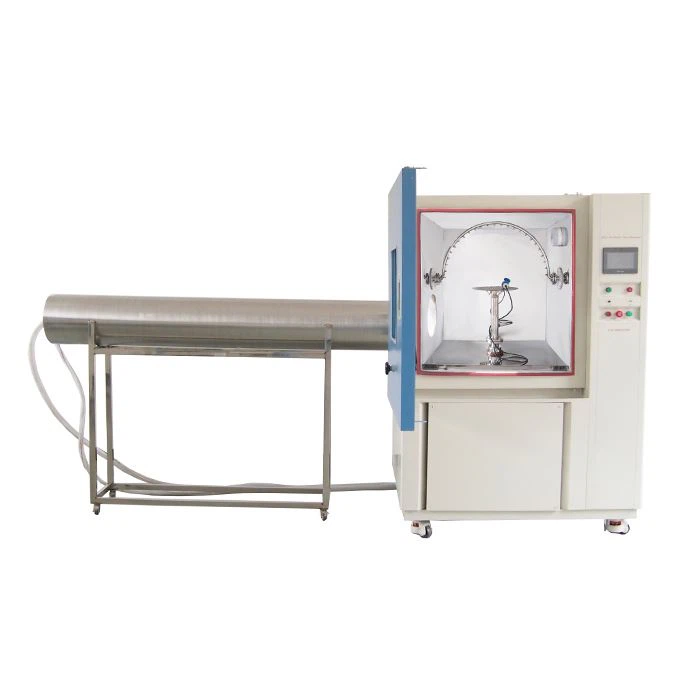

IPX5 X6 Test Equipment
Model: IPX5 X6 Test Equipment;
Standard: IEC 60529, ISO20653;
Controller: Programmable controller;
Door Lock: Electromagnetic lock;
Application:Electronic, street lamp;
Maximum Noise:
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ipx5 x6 test equipment in China, featured by quality products and low price. Welcome to buy CE approved ipx5 x6 test equipment in stock here and get quotation from our factory. Contact us for discount information.
The main function of IPX5 X6 test equipment is to test the physical and other related properties of the product. After the test, the performance of the product is judged to meet the requirements through verification, so as to facilitate the design, improvement, verification and delivery inspection of the product.
 | IPX5 X6 Test Equipment |
| Model | R56-800C |
Workroom dimension (mm) | 800*800*800 D*W*H |
External dimension (mm) | 950*3150*1800 D*W*H |
Diameter of Turntable (mm) | 600 |
Turntable Rotation Speed | 0~7r/min (Adjustable) |
Internal Diameter of IPX5 Nozzle | 6.3mm |
Internal Diameter of IPX6 Nozzle | 12.5mm |
Water Flow Rate IPX5/ IPX6 | 12.5L/min ±5% / 100L/min ±5% |
Water Supply System | Water tank, booster pump, Automatic water supply, Water purification system |
Standard | IEC 60529, ISO20653 |
Details
 |  |
| IPX5 rain tester is controlled by PLC and touch screen | iec60529 IPX5 tester is made of stainless steel and can be customized |
Features
1. Convenient to observe samples
The IPX5 test equipment is equipped with LED waterproof lighting and large observation window to facilitate the observation of test samples.
2. Water supply system
IPX6 test equipment with water tank, water circulation, no need to build a professional waterproof test room.
The water level float ball valve is installed in the water tank of the IPX5 rain test equipment to automatically control the water intake, and has high and low water level alarm monitoring to effectively prevent the water pump from drying out and damaging.
