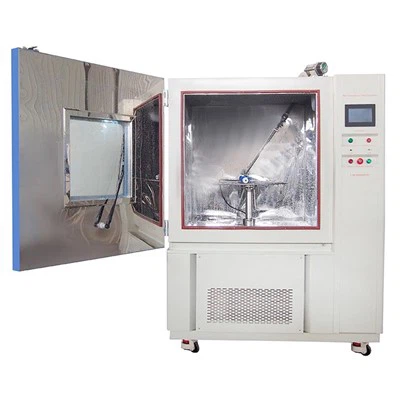

JIS D0203 Rain Test Chamber

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of jis d0203 rain test chamber in China, featured by quality products and low price. Welcome to buy CE approved jis d0203 rain test chamber in stock here and get quotation from our factory. Contact us for discount information.



JIS D0203 Rain Test Chamber, is experimental equipment that meets the Japanese automotive waterproof test standards, tests the waterproof and moisture-proof performance of auto parts, and improves the performance of products for automobile manufacturers



Specification

---



Model	R-1000JIS
Internal Dimensions (mm)	1000*1000*1000 D*W*H
Overall Dimensions (mm)	1100*1460*1900 D*W*H
Interior Volume (L)	1000
Distance from Specimen to Nozzle	Approx.400 mm
Rain Nozzle	2 holes
Rain Nozzle Hole	Φ0.5 mm
R1 Water Flow Rate	1.9L/min.
R2 Water Flow Rate	3.3L/min.
Spray Nozzle	40 holes
Spray Nozzle Hole	Φ1.2 mm
S1 Water Flow Rate	24.5L/min
S2 Water Flow Rate	39.2L/min
Water Pressure at Nozzle	0.03 ~ 0.30MPA
Turntable Rotation Speed	17r/min
Water Pressure Control	Flow meter
Controller	Programmable color LCD touch screen controller, Ethernet connection
Build-in Water Tank(mm)	370*375*950
View Window Size(mm)	475*475
Water supply system	Water tank, booster pump, Automatic water supply, Water purification system
Safety Device	Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Observation Window	Double layer insulating glass with wiper
Power Supply	380V 50Hz



Details

Flow pipe Flow pipe is made of stainless steel and shall be rotated around the axis X-S at the rate of approximately 23r/min.	Viewing Window
Turntable	Controller



Test Purposes

---

●Moisture Test

M1 investigates the function of components against moisture

M2 investigates the function of components in hot, humid environments



●Dispersion Test

R1 investigates the function of parts exposed to water droplets

R2 investigates the function of parts that are indirectly exposed to wind, rain or water



●Water Spray Test

S1 investigates the function of parts directly exposed to wind, rain or water

S2 investigates the function of components in intense water spray conditions



●Immersion Test

D1 Investigate the function of temporary submerged parts

D2 Investigate the function of frequently submerged parts or parts requiring complete waterproofing D3 Investigate the function of special purpose waterproof parts
