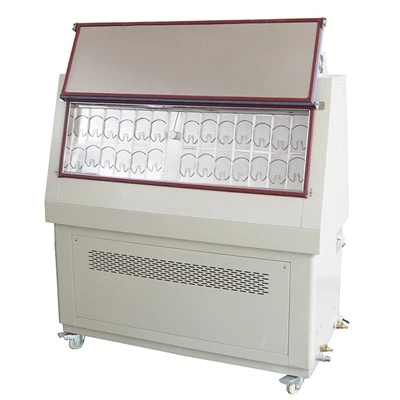

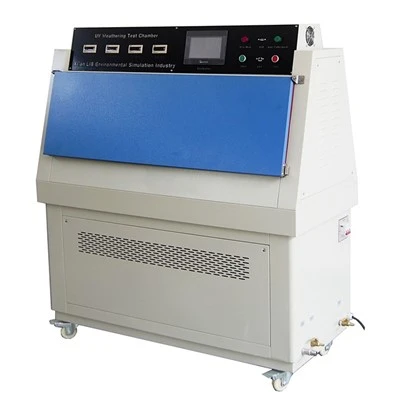

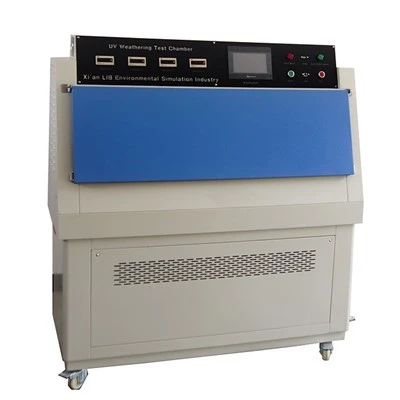

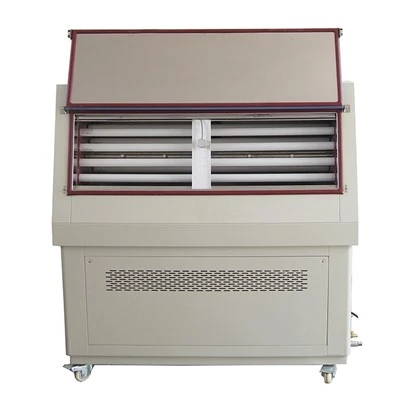

Solar Radiation Simulation Chamber

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of solar radiation simulation chamber in China, featured by quality products and low price. Welcome to buy CE approved solar radiation simulation chamber in stock here and get quotation from our factory. Contact us for discount information.



The LIB Solar radiation simulation chamber is developed to provide UV aging tests. It uses fluorescent ultraviolet (UV) lamps to simulate the effects of sunlight, mainly to reproduce harmful light in sunlight, while it also simulates rain and dew through humidity condensation.



Technical Parameters

---

Model	UV-260	UV-SI-260
Internal Dimension (mm)	450*1170*500	450*1170*500
Overall Dimension (mm)	680*1300*1500	680*1300*1500



Specimen Holder Size	Temperature Range	Black Panel Temperature (BPT)	Humidity Range	Bandwidth	Irradiance Control
75*180mm	Ambient～90℃±2℃	35～80 ℃	≥95% RH	290~400nm	0.3~20W/㎡



Features

---



● The main components of the cooling system are all purchased from international famous brands to ensure that the compressor provides stable cooling capacity and refrigeration efficiency.

●The touch screen controller has a friendly human-machine interface and supports multi-language switching. The operation process is simple and clear.

●Temperature control system: high-precision temperature controller and temperature sensor(PT 100)

●Programmable controller (set test time, lighting time, condensation time, spraying time)



---

Sample holder	Controller
UV lamp	Black Panel Thermometer



Test Standard

---

●ISO 4892-3:2016 Plastics — Methods of exposure to laboratory light sources — Part 3: Fluorescent UV lamps

●EN 927-6 Paints and varnishes – Coating materials and coating systems for exterior wood – Part 6: Exposure of wood coatings to artificial weathering using fluorescent UV lamps and water

●ASTM G154 – Standard Practice for Operating Fluorescent Ultraviolet (UV) Lamp Apparatus for Exposure of Nonmetallic Materials



Application

---

Solar radiation simulation chamber is widely used in paintings, plastics, textile industry.
