Temperature Stress Testing Machine
Temperature stress testing machine, we also call it fast change rate thermal cycle chamber, is a specialized piece of equipment used to test the performance and durability of products in extreme temperature conditions. This chamber has the ability to quickly and accurately change temperatures,...
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of temperature stress testing machine in China, featured by quality products and low price. Welcome to buy CE approved temperature stress testing machine in stock here and get quotation from our factory. Contact us for discount information.
Temperature stress testing machine, we also call it fast change rate thermal cycle chamber, is a specialized piece of equipment used to test the performance and durability of products in extreme temperature conditions. This chamber has the ability to quickly and accurately change temperatures, allowing for the simulation of varying environmental conditions.
The main applications of the fast change rate temperature test chamber are in the field of research and development, product testing, and quality control. It is used to test the resistance of products to extreme temperatures, humidity, and thermal shocks. This helps to identify potential weaknesses in products, ensuring that they are durable and reliable for use in real-world conditions.
The fast change rate temperature test chamber is particularly useful in the testing of industrial equipment, electronics, and automotive components. With its ability to simulate extreme conditions, it provides valuable data for the design and development of new products.
Overall, the fast change rate temperature test chamber is a vital tool for ensuring the quality and durability of products. Its applications are diverse and range from research and development to quality control in a variety of industries.
Products Description
|
|
|
|

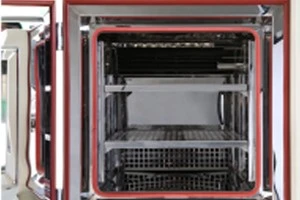

Workroom
The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion; Nice ruggedness and long life. |

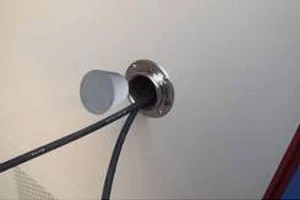

Cable Hole A standard test hole, located on the left side of the workroom, is provided with a sleeve inside to prevent moisture from entering the insulation layer. Equipped with flange. The standard inner hole diameter is 50 mm（customizable）.
|
|
|
|
|

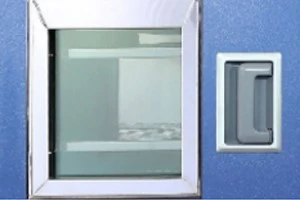

Viewing Window Double layer insulating glass 8 cm thick, made of tempered glass. The conductive film is located on the interior glass to prevent window frosting, built-in LED light for the workroom lighting ;can clearly observe samples. |

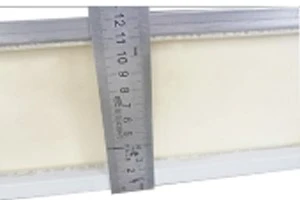

Insulation 10 cm thick polyurethane foam and insulation cotton; Better insulation performance, degradation resistance, environmental protection, noise reduction. |
Other Features
- High power mechanical compressor, excellent cooling effect and stability
- The centrifugal fan accelerates the air circulation and keeps the temperature and humidity in the working room uniform
- Safety measures are complete: Over Temperature Protection, Overcurrent Protection, Earth Leakage Protection, Phase Sequence Protection...
Products Parameter
|
Model |
TK5-100 |
TK5-225 |
TK5-500 |
TK5-800 |
TK5-1000 |
|
|
Internal Dimension (mm) |
400*500*500 |
500*600*750 |
700*800*900 |
800*1000*1000 |
1000*1000*1000 |
|
|
Overall Dimension (mm) |
860*1050*1620 |
960*1150*1860 |
1180*1350*2010 |
1280*1550*2110 |
1500*1550*2110 |
|
|
Interior Volume |
100L |
225L |
500L |
800L |
1000L |
|
|
Heat load |
1000W |
|||||
|
Parameter |
Temperature Range |
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
||||
|
|
Temperature Fluctuation |
± 0.5 ℃ |
||||
|
|
Temperature Deviation |
± 2.0 ℃ |
||||
|
|
Cooling Rate |
5 ℃ / min |
||||
|
|
Heating Rate |
5 ℃ / min |
||||
|
Structure |
Cooling |
Cooling system |
Mechanical compression refrigeration system |
|||
|
|
|
Refrigerating unit |
French TECUMSEH compressor |
|||
|
|
|
Refrigerant |
R404A, R23 |
|||
|
|
Heating Element |
Nichrome heater |
||||
|
|
Controller |
Programmable color LCD touch screen controller |
||||
|
|
|
Ethernet connection, PC Link |
||||
|
|
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ |
||||
|
|
View Window Size(mm) |
250*280 |
300*330 |
330*370 |
||
|
|
Air Circulation |
Centrifugal wind fan |
||||
|
|
Safety Device |
Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection |
||||
|
Material |
Exterior Material |
Steel Plate with protective coating |
||||
|
|
Interior Material |
SUS304 stainless steel |
||||
|
|
Thermal Insulation |
Polyurethane foam and insulation cotton |
||||
|
|
Observation Window |
Interior lighting, double-layer thermo stability silicone rubber sealing |
||||
|
Standard Configuration |
1 Cable hole (Φ 50), with plug; 2 shelves |
|||||
|
Power Supply |
220V 50Hz / 380V 50Hz |
|||||
|
Maximum Noise |
65 dBA |
|||||
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
|||||
