Thermal Chamber For Battery Testing
Temperature Range:
A : -20℃ ～ +150 ℃
B : -40℃ ～ +150 ℃
C: -70℃ ～ +170 ℃
D: -80℃ ～ +170 ℃
Cooling Rate:
10 ℃ / min （average）
Heating Rate:
10 ℃ / min （average)
Volume:
100L, 225L, 500L, 800, 1000L, 2000L, 3000L
Refrigeration mode：
Air-cooled or water-cooled
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of thermal chamber for battery testing in China, featured by quality products and low price. Welcome to buy CE approved thermal chamber for battery testing in stock here and get quotation from our factory. Contact us for discount information.
A thermal chamber for battery testing is an advanced testing facility designed specifically for battery testing in hazardous environments. It features robust construction with explosion-proof materials to prevent incidents caused by an explosion or fire during battery testing. It is equipped with advanced safety features such as flame arrestors, exhaust systems, and ventilation systems to ensure the safe operation of battery testing.
The test chamber is also designed to withstand high pressure and temperature conditions, ensuring that it remains stable during testing. The test chamber is ideal for use in various industries, including automotive, aerospace, military, and energy. It offers improved safety for battery testing, to protect personnel and facilities from potential hazards during battery testing.
Basic Parameter
|
Temperature Range |
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +170 ℃ |
||
|
Temperature Fluctuation |
± 0.5 ℃ |
||
|
Temperature Deviation |
± 2.0 ℃ |
||
|
Cooling Rate |
10 ℃ / min （average） |
||
|
Heating Rate |
10 ℃ / min （average) |
||
|
Cooling |
Cooling system |
Mechanical compression refrigeration system |
|
|
Refrigerating unit |
French TECUMSEH compressor |
||
|
Refrigerant |
R449A, R508B |
||
|
Heating Element |
Nichrome heater |
||
|
Controller |
Programmable color LCD touch screen controller |
||
|
Ethernet connection, PC Link |
|||
|
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ |
||
|
Air Circulation |
Centrifugal wind fan |
||
|
Exterior Material |
Steel Plate with protective coating, |
||
|
Interior Material |
SUS304 stainless steel |
||
|
Thermal Insulation |
Polyurethane foam and insulation cotton |
||
|
Observation Window |
Interior lighting, double-layer thermo stability silicone rubber sealing, with explosion-proof mesh |
||
|
Standard Configuration |
1 Cable hole (Φ 100), with plug; 2 shelves |
||
|
Power Supply |
400V 50Hz 3P |
||
|
Cooling type |
Air cooling |
||
|
Maximum Noise |
65 dBA |
||
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
||
Product Details
|
|
|
|

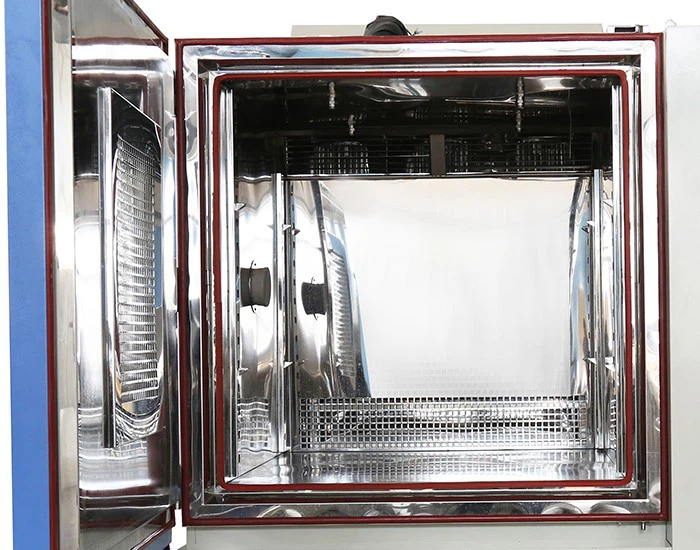

Workroom: Special explosion-proof material reinforced the workroom of thermal chamber for battery testing. |
Controller: PID programmable color touch screen controller, network connection computer. LIB also can preset program into the controller based on user testing requirements. |
|
|
|
|
Detector & Spray: Smoke detector: Equip with smoke detector, located in the upper right corner of the workroom. Equip with “Buzzer” Water spray system: 4 pcs nozzle. Located on both sides of the top of the workroom. When the test specimen explodes and produces dense smoke, the detector will alert, and the water spray device will spray the water in time. |
Manometer: It shows the pressure inside the compressor in real time, and the tester adjusts the compressor according to the value here. |
|
|
|
|

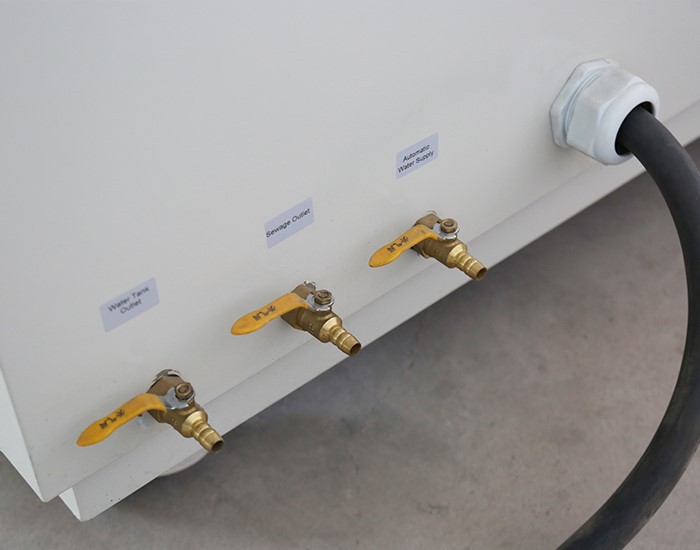

Water supply and sewage outlet: Waste water after spraying will be discharged from a dedicated pipeline. |
Viewing Window: Double layer insulating glass 8 cm thick, made of tempered glass, with explosion-proof mesh. |
Our Advantages
- Safety is guaranteed: Super thick plate, explosion-proof reinforcement design. Smoke alarm system, spray fire extinguishing device. After the fire is over, the pressure will be sucked out by a fan and discharged through the ventilation duct.
-
Calibration: Before delivery, LIB engineer will calibrate it, and issue “Calibration Report”
-
Packaging: Three layers of packaging, waterproof plastic film, buffer foam and wooden box
-
Warranty&Service: 3 Years Warranty, Lifelong Follow-up Services
If you are interested in this thermal chamber for battery testing, or have any questions, please feel free to contact us for more details.
