Thermal Cycling Test Equipment
The Thermal Cycling Test Equipment allows for environmental stress screening of components, which is a method of screening samples for exposure to climatic, thermal, or mechanical stresses that may lead to premature failure. For example, defects in electronic module design, materials, or production can be detected. Environmental stress screening can be used to identify unreliable systems that have entered the production testing phase as a standard method of quality improvement, effectively extending the normal working life of products. Thermal Cycling Test Equipment can achieve rapid temperature rise and fall to meet the rapid change of temperature testing needs. The temperature change rate can be 5℃/min, 10℃/min, 15℃/min and 20℃/min.
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of thermal cycling test equipment in China, featured by quality products and low price. Welcome to buy CE approved thermal cycling test equipment in stock here and get quotation from our factory. Contact us for discount information.
Products Description
 |  |  |  |  |
| PT-100 Class A Sensor | Cable Hole | Heating Tube | Compressor | Controller |
Temperature Sensor: The Thermal Cycling Test Equipment is equipped with an PT-100 A-class sensor with an accuracy of 0.001, mounted in the upper right corner of the studio, while customers can also choose other types of temperature probes.
Cable Hole: The standard cable hole is located on the left side of the chamber, with a diameter of 50 or 125 mm, used to energize the test piece.
Heating Device: Nickel-chromium alloy heating wire, located in the back of the workroom sandwich, fast heating rate and long life.
Compressor: France TECUMSEH compressor, stable performance and strong cooling capacity.
Controller: Programmable controller, support for multi-language switching.It can be connected to the Internet, also the operator can remotely monitor the operation of the device from a personal computer.
The internal material is 304 stainless steel, mirror surface, rust-proof; resists high and low temperature impact and moisture corrosion; nice ruggedness and long life.
It has just one chamber for the test room, who circulates cold and hot air through the pneumatic damper on the left and right sides. This design makes the external size smaller.

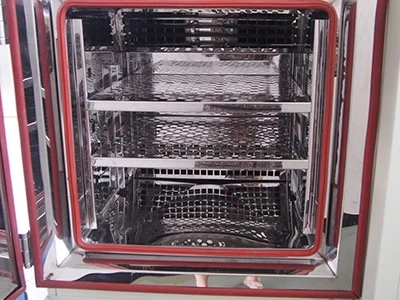

SUS304 stainless steel punching sample shelf 2pcs; a standard load of 50KGS for each layer of the sample shelf; The height of the shelf is adjustable and can be removed directly to facilitate the various sizes of test samples. Conducive to the air circulation.

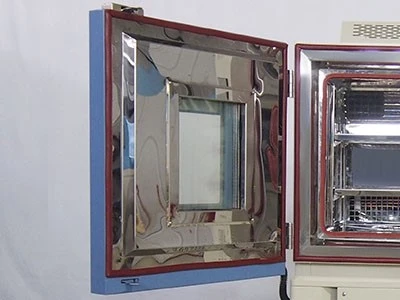

View window
Double layer insulating glass 8cm thick, made of tempered glass.
The conductive film is located on the interior glass to prevent window frosting, built-in LED light for the workroom lighting, can clearly observe samples. The light control button is located below the controller.
Parameters
Model | TK5-100 | TK5-225 | TK5-500 | TK5-800 | TK5-1000 | |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 | |
Overall Dimension (mm) | 860*1050*1620 | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 | 1500*1550*2110 | |
Interior Volume | 100L | 225L | 500L | 800L | 1000L | |
Heat load | 1000W | |||||
Parameter | Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | |||||
Temperature Deviation | ± 2.0 ℃ | |||||
Cooling Rate | 5 ℃ / min | |||||
Heating Rate | 5 ℃ / min | |||||
Structure | Cooling | Cooling system | Mechanical compression refrigeration system | |||
Refrigerating unit | French TECUMSEH compressor | |||||
Refrigerant | R404A, R23 | |||||
Heating Element | Nichrome heater | |||||
Controller | Programmable color LCD touch screen controller | |||||
Ethernet connection, PC Link | ||||||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ | |||||
View Window Size(mm) | 250*280 | 300*330 | 330*370 | |||
Air Circulation | Centrifugal wind fan | |||||
Safety Device | Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection | |||||
Material | Exterior Material | Steel Plate with protective coating | ||||
Interior Material | ||||||
Thermal Insulation | Polyurethane foam and insulation cotton | |||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||||
After sevice
◇ If customers need our engineers' on-site service, the company only needs to pay the ticket accommodation to our engineers, service is for free.
◇If Products still can't use after our engineers' repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
◇You can contact our local service center in the overseas market to get service and products.
If you have questions about the size, capacity, temperature, and humidity range of this Thermal Cycling Test Equipment, you can click our contact us button immediately, there will be professional customer service to answer your questions.
At Xi'an LIB Industry, we provide the most professional and sincere service. Before purchasing, if you have any unclear about our products, you can contact us at any time, and we will reply to you in the shortest time, and solve your doubts and concerns.
Looking forward to hearing from you!
