IPX5 Waterproof Chamber
Model:IPX5 Waterproof Chamber;
Standard: IEC 60529, ISO20653;
Controller: Programmable controller;
Door Lock: Electromagnetic lock;
Application:Electronic, street lamp;
Maximum Noise:
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ipx5 waterproof chamber in China, featured by quality products and low price. Welcome to buy CE approved ipx5 waterproof chamber in stock here and get quotation from our factory. Contact us for discount information.

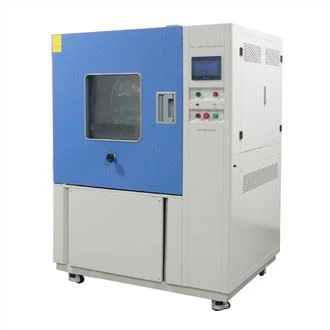

IPX5 Waterproof Chamber IPX5 IPX6 IPX6K is suitable for external lighting and signaling devices and automotive lamps and lanterns outer barrier protection,
Rainproof test chamber can provide a realistic simulation of electronic products and their components in the transportation and use of various environments such as water and spray tests, in order to detect the waterproof performance of various products.
 | IPX5 Waterproof Chamber |
| Model | R56-800C |
Workroom dimension (mm) | 800*800*800 D*W*H |
External dimension (mm) | 950*3150*1800 D*W*H |
Diameter of Turntable (mm) | 600 |
Turntable Rotation Speed | 0~7r/min (Adjustable) |
Internal Diameter of IPX5 Nozzle | 6.3mm |
Internal Diameter of IPX6 Nozzle | 12.5mm |
Water Flow Rate IPX5/ IPX6 | 12.5L/min ±5% / 100L/min ±5% |
Water Supply System | Water tank, booster pump, Automatic water supply, Water purification system |
Standard | IEC 60529, ISO20653 |
Details
 |  |

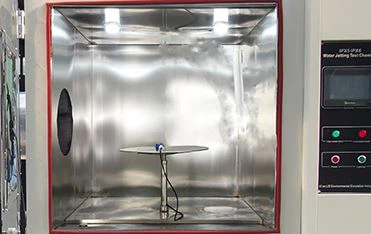

| IPX5 rain tester is controlled by PLC and touch screen | iec60529 IPX5 tester is made of stainless steel and can be customized |
IEC60529 Standard
Nozzle distance from product: 2.5-3m.
IPX5: Nozzle diameter 6.3mm, distance 2.5-3m, 12.5L/min +5%, pressure of about 300kpa(ipx5 test chamber )
IPX6: Nozzle diameter 12.5mm, distance 2.5-3m, 100L/min +5%, pressure of about 300kpa(ipx6 test chamber )
IPX6K: Nozzle diameter 6.3mm, distance 2.5-3m, 75L/min +5%, pressure of about 1000kpa
