Advanced Salt Spray Test Machines for Precise ISO9227 Corrosion Testing

When you're evaluating coatings, metals, plastics, or automotive parts for durability, it's essential to simulate corrosion with a chamber that delivers precise conditions, repeatable results, and full compliance with international standards.

LIB's Salt Spray Test Machines create tightly controlled salt fog environments, maintaining exact solution concentration, pH balance, spray deposition, and chamber temperature. Designed in accordance with ISO 9227 and related standards, these systems support everything from accelerated life testing of painted panels to performance validation of industrial components, ensuring results that are both consistent and traceable.

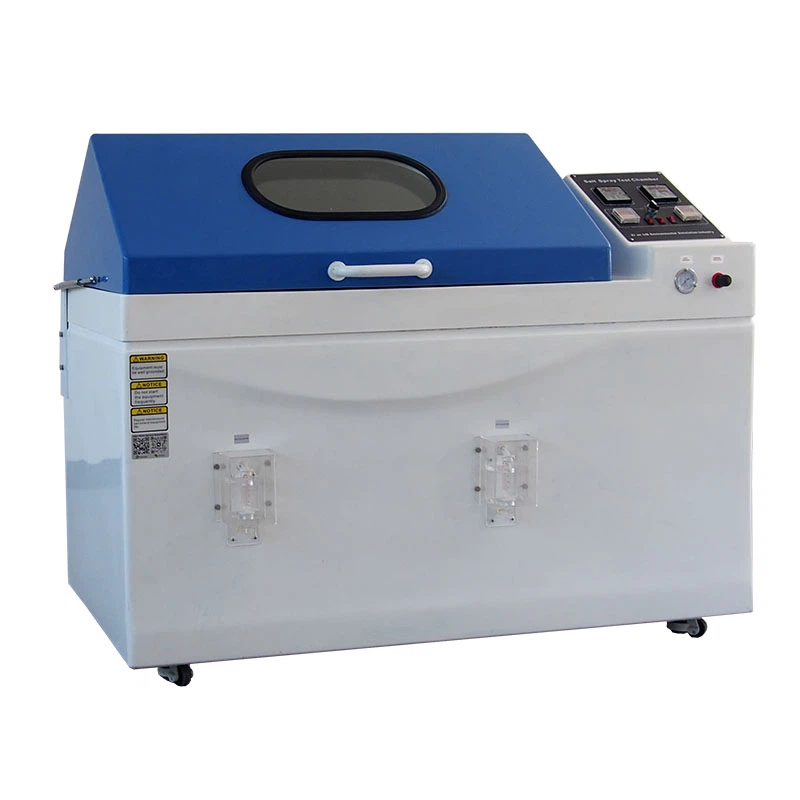

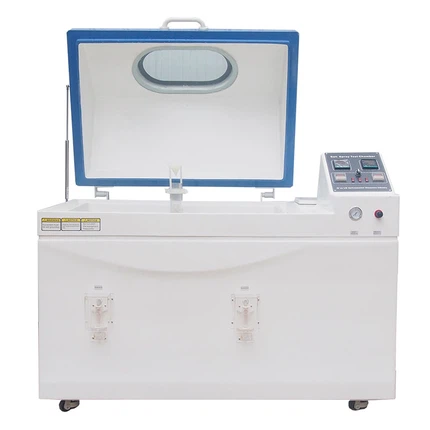

Name	Basic Salt Spray Test Machine
Model	S-150	S-250	S-750
Internal dimensions (mm)	470*590*400	640*1000*500	750*1100*500
Interior Volume (L)	110	320	410
Temperature Range	Ambient ～ +60 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	95% ~ 98% RH
Salt Fog Deposition	1～2ml / 80cm2 · h
Spray Type	Continuous / Periodic
Heating Element	Nichrome heater
Salt Fog Collected	Fog collector and fog measure cylinder
Air Preheating	Saturated air barrel (31Liter)
Spraying System	Atomizer tower and Spray nozzles
Sealing	Hydrostatic hood seal
Controller	PID controller
Temperature Sensor	PT100Ω / MV A-class
Material	Glass fiber reinforced plastics
Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection

【How does the LIB Salt Spray Test Machine achieve precise corrosion testing under ISO9227 standards?】

LIB designs its salt spray machines to control the four variables that determine an ISO9227 test: salt concentration, pH, spray deposition rate, and exposure temperature. Key controls and measured values include:

Salt solution: 5% NaCl ±1% with pH maintained at 6.5–7.2 via a precision stirring and heating tank.

Spray pressure and atomization: Quartz nozzles and spray towers are used to maintain a spray pressure of 83 kPa to ensure uniform and consistent atomization.

Deposition rate: targeted at 1–2 mL / 80 cm² · h, monitored in real time using a spray collector and graduated cylinder; location-to-location variance ≤ 0.2 mL / 80 cm² · h.

Temperature control: The saturated barrel preheats the air to 35 ±2 °C, achieving precise stability of ±0.5 °C through PID control and a PT-100 Class A sensor.

Additionally, LIB's controller records temperature, spray time, pH and deposition data and exports them via USB/Ethernet for full traceability. This combination of measured chemical mix, precise spray mechanics, and high-accuracy sensors ensures every ISO9227 run is repeatable and auditable.

controller

【Ensuring Reliable Material Testing of Metals, Automotive Parts, and Plastics with LIB Salt Spray Machines】

LIB's systems are built to reproduce real failure modes quickly and reliably so you can make confident product decisions:

Multi-mode testing: NSS, AASS and CASS modes simulate neutral, acidic and copper-accelerated corrosive conditions to match coating types from standard paint to high-end decorative finishes.

Cyclic realism: the cyclic chamber alternates salt spray → high humidity → temperature cycling → drying airflow to reveal issues such as cracking, blistering, and scribe creep earlier than single-state tests.

Sample versatility: fixtures like V-grooves, round rods and custom racks handle panels, housings, pipes and assemblies so results reflect real geometries.

Material durability: one-piece fiberglass-reinforced plastic (FRP) interiors resist long-term salt exposure. SO₂ chambers add gas contamination (ISO 6988 / ASTM G87) with safety neutralization (NaOH) to test industrial atmospheres.

In practice, this means: a 5% ±1% NaCl solution, a stable 1–2 mL deposition rate, and ±0.5 °C control translate into consistent failure timing across batches-so your QA and R&D teams can compare coatings, surface treatments, and design changes with confidence.

【How to Maintain LIB Salt Spray Series: From Compact to Walk-In Chambers with Basic, Cyclic, and SO₂ Tests?】

Routine, simple maintenance keeps results accurate and machines running:

Daily: verify salt concentration and pH; check deposition collector; confirm nozzle spray pattern.

Weekly: inspect and clean quartz nozzles; confirm stirring/heating function in the salt tank.

Monthly: calibrate PT-100 sensors and validate deposition uniformity across at least 3 points (target variance ≤ 0.2 mL / 80 cm² · h).

Annual: service PID controller firmware and inspect FRP shell and seals; replace filters and test safety interlocks.

Choose by need: small units (S-150/S-250/S-750 - 110–410 L) for lab screening; walk-in chambers for full assemblies.

LIB offers a 3-year warranty plus lifetime support and 7–15 day delivery options for standard configurations.

Accurate corrosion testing is measurable control.

For customers with special testing requirements, LIB offers customized solutions, including customized test chamber dimensions, special fixtures, multi-point deposition monitoring, adjustable spray angles, and programmable test sequences. These custom options ensure that complex samples, complete assemblies, or non-standard geometries can be tested accurately and reliably under ISO 9227 conditions, maintaining the same level of precision and reliability as standard configurations. Requirements of different standards such as ASTM B117, ISO 9227, ISO 6988, ASTM G87, etc. can also be met.

Contact LIB today to discuss your testing requirements and customized salt spray solutions. LIB delivers it with quantified chemistry, tight deposition control, and automated traceability-so ISO9227 results are not guesses but reproducible data you can act on.
