Can a UV Light Accelerated Aging Chamber simulate sunlight exposure?

Sunlight seems harmless, but continuous exposure to ultraviolet radiation, heat, humidity, and rain can gradually damage materials. Plastic housings become brittle, coatings lose gloss, rubber cracks, and textile colors fade. For manufacturers, waiting months or years for natural outdoor exposure testing is often impractical when products must reach the market quickly.

This article explains how a UV Light Accelerated Aging Chamber simulates sunlight exposure, how it compares with natural weathering tests, why leading laboratories choose it, and how to select between UV and xenon arc accelerated aging chambers.

1. UV Lamps Reproduce the Most Damaging Portion of Sunlight

The primary cause of outdoor material degradation is ultraviolet radiation. A UV Light Accelerated Aging Chamber uses imported UV fluorescent lamps such as UVA-340, UVB-313, and UVB-351 to reproduce the UV wavelengths responsible for most weathering damage.

UVA-340 lamps closely simulate the ultraviolet portion of natural sunlight from 295 nm to 365 nm, while UVB-313 lamps provide a more aggressive accelerated aging effect for comparative testing. The lamp power is 40 W, and the spectral output remains stable for up to 5,000 hours, ensuring highly repeatable testing results.

By concentrating UV exposure inside a controlled chamber, several years of outdoor aging can often be reproduced within weeks or months.

2. Temperature, Humidity, and Water Spray Create Real Environmental Conditions

Sunlight alone does not cause weathering. Materials outdoors also experience heat, condensation, rain, and humidity fluctuations.

LIB UV Light Accelerated Aging Chambers combine:

① Temperature range: Ambient to +90°C ±2°C

② Humidity: ≥95% RH ±2% RH

③ Water spray system: 10 spray nozzles

④Spray rate: 0.8–1.0 ml/80 cm²/h

⑤Water flow: approximately 0.3 L/min

The programmable system alternates UV exposure, condensation, darkness, and water spray cycles to simulate real outdoor weather conditions more accurately than continuous UV exposure alone.

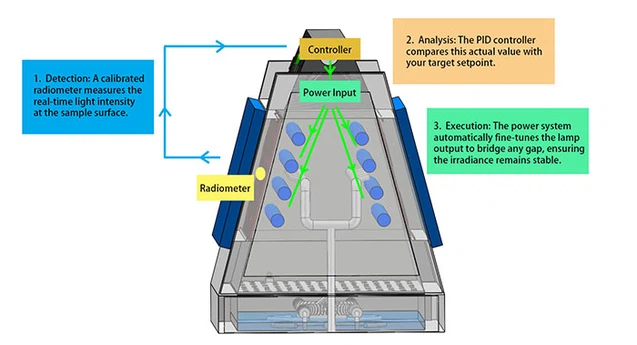

3. Intelligent Irradiance Control Ensures Testing Accuracy

A major challenge in accelerated weathering testing is maintaining stable UV intensity throughout long test cycles.

LIB chambers use the UV-SI-260 irradiance monitoring system with a control range of:

0.15–5 W/m²

Available wavelengths: 340 nm and 313 nm

The irradiance sensor continuously monitors UV output and automatically adjusts lamp performance. This ensures compliance with major international testing standards and improves test reproducibility.

1. Faster Results with Better Repeatability

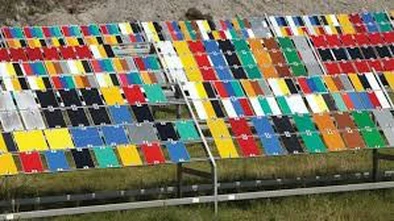

Natural weathering tests expose samples to actual sunlight and environmental conditions. However, results depend heavily on geographical location, season, rainfall, and climate variability.

A UV Light Accelerated Aging Chamber provides:

For research laboratories and manufacturers, accelerated testing significantly reduces product development cycles while improving consistency.

2. Standards Supported by UV Accelerated Aging Chambers

LIB UV chambers are designed to comply with major international weathering standards, including:

ASTM G154 – UV Fluorescent Lamp Exposure

ISO 4892-3 – Plastics Exposure to Fluorescent UV Lamps

SAE J2020 – Automotive Exterior Materials Testing

ASTM D4587 – UV Condensation Exposure Testing

GB/T 16422.3 – Artificial Weathering for Plastics

These standards are widely adopted by certification laboratories and quality assurance departments worldwide.

3. Industries Commonly Using UV Weathering Testing

Because UV radiation primarily affects surface degradation, UV chambers are widely used in:

① Coating and paint laboratories

② Plastic product manufacturers

③ Automotive exterior component suppliers

④ Textile and dye manufacturers

⑤ Rubber product development

⑥ Building material testing centers

⑦ Solar panel material research

⑧ University and government research laboratories

Recently, LIB completed scheduled after-sales maintenance for a UV Light Accelerated Aging Chamber installed at Xi'an Jiaotong University.

The laboratory primarily uses the equipment for coating durability and weather resistance research. During maintenance and calibration, the research team expressed satisfaction with the chamber's long-term operational stability and testing consistency.

Several features received particularly positive feedback:

1. Stable Irradiance Control

Researchers noted that the UV irradiance remained highly stable throughout extended testing periods, helping ensure reliable coating degradation data and reducing result variability.

2. Convenient Sample Loading

The chamber's flat aluminum specimen holders can accommodate up to 52 samples simultaneously, making sample installation and removal quick and efficient for large batch testing projects.

3. Compliance with International Standards

The university laboratory frequently conducts testing according to ASTM G154 and ISO 4892-3 requirements. LIB's precise irradiance control, temperature uniformity, and programmable testing cycles help researchers meet these standards with confidence.

4. Easy Operation and Data Management

The color touchscreen controller supports up to 120 programs with 100 steps per program. Researchers appreciated the multilingual interface, automated operation, and USB data export functionality, which simplified experiment management.

LIB UV-SI-260 UV Light Accelerated Aging Chamber

Both technologies perform accelerated weathering testing, but they serve different testing objectives.

Which Chamber Should You Choose?

Popular Weathering Resistance Test Chambers



UV Weathering Resistance Test Chamber

Focused UV Testing,Stable UV Exposure

Xenon Weathering Resistance Chamber

Simulates Real Sunlight

UV Exposure Chamber for PV Modules

Designed for PV Modules

Temperature And Humidity Aging Chamber For Composites

Basic Temperature & Humidity Testing, ±2°C Accuracy



IP69K Test Chamber

Popular for Enclosure Testing

Compact Environmental Test Chambers

Compact, Affordable, and Fully Featured

Q1：Can a UV chamber completely replace outdoor exposure testing?

No. Outdoor exposure remains the final validation method. However, UV accelerated aging chambers can dramatically shorten development cycles and identify potential material failures much earlier.

q2: How many samples can be tested simultaneously?

LIB UV chambers can accommodate up to 52 specimens using standard flat specimen holders. Customized holders are also available for special sample dimensions.

q3: What international standards does the chamber support?

The equipment supports ASTM G154, ASTM D4587, ISO 4892-3, SAE J2020, and other stardard, among other weathering standards.

q4: Does LIB provide installation and training?

Yes. LIB provides equipment installation, commissioning, operation training, maintenance guidance, and long-term technical support to ensure reliable chamber performance.

q5: Can LIB arrange international shipping?

Yes. LIB has extensive experience shipping environmental test chambers worldwide. Equipment is professionally packaged for ocean, air, or land transportation, and export documentation is provided according to destination requirements.

q6: How long is the delivery time?

Delivery time varies according to chamber configuration and customization requirements. Standard models generally have shorter lead times, while customized systems may require additional manufacturing time.

Discover how LIB UV Light Accelerated Aging Chambers help laboratories achieve faster, more reliable, and standards-compliant weathering evaluations for coatings, plastics, rubber, textiles, and advanced materials. Contact LIB Industry today for your customized weathering testing solution.
