When products face outdoor exposure-whether they are vehicle sensors, lighting systems, or consumer electronics-accurate waterproof testing becomes essential. Real-world conditions can range from gentle drizzle to driving rain, and without reliable simulation, failures can cost manufacturers their reputation and revenue.
LIB's IPX3 X4 Rain Spray Test Chamber delivers laboratory precision that mirrors real weather. By recreating oscillating rain spray at controlled flow rates and angles, it helps verify whether enclosures meet international ingress protection standards. Built for long-term reliability, the chamber ensures consistent performance and minimal maintenance, making it ideal for R&D, quality inspection, and certification testing.
Working Principle and Suitable Tests of the IPX3 X4 Rain Spray Test Chamber
The IPX3 and IPX4 tests are designed to measure a product's resistance to water sprayed at varying angles and intensities.
IPX3 Test Principle:
This level simulates rainfall or spraying water up to 60° from vertical. According to IEC 60529, water is sprayed through 0.4 mm holes spaced 50 mm apart along an oscillating tube. The tube swings ±60° at a flow rate of 0.07 L/min per hole, and the test lasts for at least 10 minutes. The goal is to ensure that the enclosure can withstand splashing from moderate rain without letting water enter critical components.
IPX4 Test Principle:
IPX4 represents a more demanding condition-continuous splashing from all directions. The swing angle extends to ±180° while maintaining the same flow rate and nozzle configuration. This exposes the sample to stronger, multi-directional water flow, verifying the reliability of its sealing system under realistic rain exposure.
Suitable Applications:
These tests apply to a broad range of products-automotive electronics, outdoor displays, junction boxes, lighting systems, and portable appliances. Manufacturers performing both IPX3 and IPX4 evaluations can validate design integrity and achieve certifications that confirm protection against environmental water ingress.
|
|
|

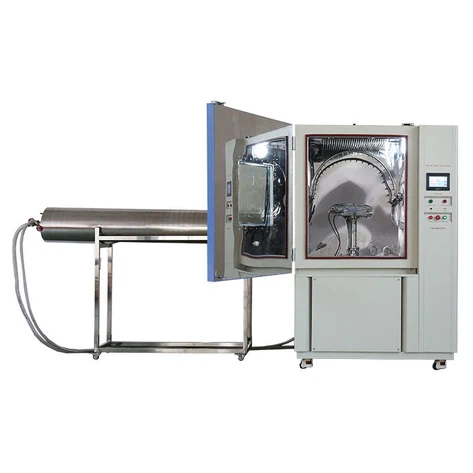

Distinct Features of LIB's Comprehensive IPX1–IPX6 Rain Spray Test Chamber
|
|
|
Multi-Level Integration
LIB's Combined Test Chamber (IPX1–IPX6) integrates the drip box (IPX1/IPX2), oscillating tube (IPX3/IPX4), and high-pressure jet nozzles (IPX5/IPX6). This allows all six waterproof tests to be conducted in one unit-saving lab space and reducing equipment costs.
Eco-Friendly Operation
The built-in closed-loop water circulation system automatically refills and filters test water, minimizing consumption and enabling long-term, unattended operation.
Standards Compliance
The system fully conforms to IEC 60529:
IPX1: 1 mm/min drip rate, specimen rotates 1 rpm for 10 min.
IPX2: Same rate at 15° tilt in four directions (10 min total).
IPX3: ±60° swing, 0.4 mm holes, 0.07 L/min flow, 10 min duration.
IPX4: ±180° swing, same flow rate, stronger coverage.
IPX5: 6.3 mm nozzle, 12.5 ± 0.625 L/min, 30–100 kPa pressure, 2.5–3 m distance, ≥3 min.
IPX6: 12.5 mm nozzle, 100 ± 5 L/min, 100 ± 5 kPa pressure, ≥3 min.
Durability and Structure
Constructed from SUS304 stainless steel, the chamber resists corrosion and maintains structural integrity in humid, high-temperature environments. A transparent observation window and LED lighting support direct monitoring.
Flexible Sample Handling
The internal turntable supports up to 50 kg, can tilt 15° for IPX2 testing, and features adjustable height. Live power-on testing is supported via a built-in sample power supply, allowing verification of functional electronics under realistic spray conditions.
| IPX3 X4 Rain Spray Test Chamber for Waterproof Testing | ||
|
|
Advanced IPX3 Waterproof Tester IEC60529 IPX3 IPX4 Lab Equipment Without Enclosure High-Precision IPX5/IPX6 Water Jetting Test Chamber Water-Saving IPX6K Test Chamber High-Efficiency IP6k9k Test Machine IP6X IP5X Dust Ingress Test Chamber
|
|
Common Questions About the Rain Spray Test Chamber
Q1: After one or two years of testing, will the oscillating tubes in IPX3/IPX4 become loose? If so, how to solve it?
The oscillating tube is designed with a detachable structure and two fastening screws. After one or two years of operation, loosening rarely occurs. If it does, simply re-tighten the screws to restore stability and ensure test accuracy and safety.
Q2: Can holes be made in the Rain Test Chamber? What if customers want to make one themselves?
Self-drilling is not recommended, as the internal turntable and oscillating tubes may be damaged or obstructed. The chamber already includes an internal power supply. If a custom port is required, please inform LIB in advance-our engineers will design a safe, non-standard solution that maintains performance and safety.
Q3: Can the oscillating tube in IPX3/IPX4 reach the bottom?
The oscillating tube swings up to 355° and reaches near the bottom but does not touch it. The lower position is supported by the turntable rod, ensuring wide spray coverage while maintaining stability and safety during operation.
Q4: During turntable rotation, will small specimens move with the table or even be displaced by water pressure?
For IPX9K or high-pressure rain tests, LIB provides dedicated fixtures to secure small test samples. These prevent displacement during rotation or under strong water jets, ensuring stable, repeatable, and reliable test results.
Q5: How is calibration performed for Water Spray IPX1, IPX2, IPX3, and IPX4?
For IPX1 and IPX2, calibration uses a collector (surface area 80 cm²) to measure actual water volume and verify the correct drip rate. For IPX3 and IPX4, calibration is ensured through a factory-calibrated flowmeter probe, guaranteeing accurate flow rates that comply with IEC 60529 and related waterproof standards.
LIB's IPX3 X4 Rain Spray Test Chamber delivers accurate, eco-efficient, and globally compliant testing performance. Whether you're verifying automotive parts, industrial sensors, or consumer electronics, this chamber ensures every product stands up to real-world rain exposure-safely, consistently, and confidently.
LIB offers a 3-year warranty and lifetime service. Any issues that cannot be resolved during the warranty period will be replaced free of charge. 24/7 English-speaking after-sales team. Fast shipping within 7-15 days.
Contact LIB Industry to discover how our next-generation waterproof testing systems can support your certification, innovation, and quality assurance goals.
