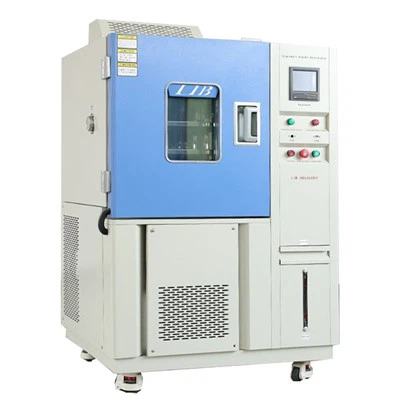

Automotive Enviro Testing Chamber
Name:heat cold and moisture chamber;
Temperature Range:-70°C~+150°C;
Model: TH-225;
Refrigerant: R404A, R23;
Temperature Fluctuation: ± 0.5 ℃;
Heating rate:3 ℃ / min;
Temperature deviation:± 2.0 ℃;
Standard and Custom;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of automotive enviro testing chamber in China, featured by quality products and low price. Welcome to buy CE approved automotive enviro testing chamber in stock here and get quotation from our factory. Contact us for discount information.
LIB automotive enviro testing chamber is also called temperature and humidity calibration chamber specially developed by our company for the calibration of temperature and humidity meter.
Video
Technical Parameters
|
Model |
TH-100 |
TH-225 |
TH-500 |
TH-800 |
TH-1000 |
|
Internal dimension (mm) |
400*500*500 |
500*600*750 |
700*800*900 |
800*1000*1000 |
1000*1000*1000 |
|
Overall dimension (mm) |
860*1050*1620 |
960*1150*1860 |
1180*1350*2010 |
1280*1550*2110 |
1500*1550*2110 |
|
Capacity |
100L |
225L |
500L |
800L |
1000L |
|
Temperature range |
-20℃ ～+150 ℃ |
||||
|
Low type |
A: -40℃ B:-70℃ C -86℃ |
||||
|
Humidity Range |
20%-98%RH |
||||
|
Temperature deviation |
± 2.0 ℃ |
||||
|
Heating rate |
3 ℃ / min |
||||
|
Cooling rate |
1 ℃ / min |
||||
|
Controller |
Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
||||
|
Refrigerant |
R404A, R23 |
||||
|
Exterior material |
Steel Plate with protective coating |
||||
|
Interior material |
SUS304 stainless steel |
||||
|
Standard configuration |
1 Cable hole (Φ 50) with plug; 2 shelves |
||||
|
Timing Function |
0.1~999.9 (S,M,H) settable |
||||
Advantage Show
 |
 |
|
|
Touch screen controller System capacity:120 groups program X100 sections |
The cooling system Two compressors Using environmentally friendly refrigerants, |
Security Settings Emergency stop button Fault warning device |
|
|
|
Product Feature
1. According to the actual requirements of numerous temperature and humidity meter verification.
2. the use of double-layer high temperature resistant anti-aging silicone sealing strip, can effectively ensure that the experimental area is not affected by the external environment:
3. ultra-thick insulation layer, designed observation window vacuum glass, cold heat does not lose, to ensure the rapid and stable rise and cooling;
Hot Tags: automotive enviro testing chamber, manufacturers, suppliers, factory, cost, price, used, specification, for sale, condensation water test chamber, High Temperature Hot Air Heat Chamber, high temperature thermal chamber, temperature humidity tester, Temperature Test Chamber, Thermal Cycling vibration chamber
